Outdoor Galvanized Welded 3D Wiremesh Fence Panel Easily Assembled Segment Types Metal Fence

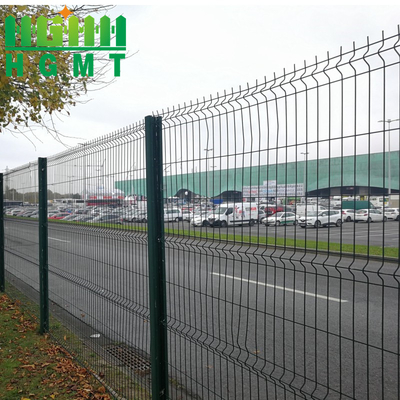

V Mesh Security Fence Information
V Mesh Security Fence can also be called V mesh fence, triangle bending fence. Because of its shape like a letter V.
V Mesh Security Fence with post is fixed all the panel with post by plastic or steel clamps. Due to its versatile appearance it can be used for a number of different premises, surrounding large areas without restricting the view.
This systems is ideal for basic demarcation. Mainly applied to public areas such as schools, parks, sports arenas and many other residential areas due to its rigidity and aesthetic appeal. It is the perfect deterrent for any commercial business wanting the extra security edge.
V Mesh Security Fencing Specification
| Material |
Low carbon steel, hot galvnaized steel |
| Height |
800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm |
| Post distance |
2000mm, 2500mm |
| Wire diameter |
4.0mm, 4.5mm, 5.0mm, 6.0mm |
| Mesh size |
50 x 200mm |
| Post |
Square post: 50 x 50mm, 60 x 60mm, 80 x 80mm
Rectangle post: 40 x 60mm, 40 x 80mm, 50 x 70mm
Peach post: 50 x 70mm, 70 x 100mm
I post: 44 x 70mm, 55 x 100mm |
| Surface treatment |
Low carbon steel+hot dipped galvanized
Hot galvanized steel+powder coated
Hot galvanized steel+pvc coated |
| Color |
dark green, black, white, yellow, grey, blue and so on
|
Post type
Packing terms
1) Panel: hot dip galvanized and PVC coated surface treatment will loose loading in the containe
2) Panel: powder coated need to be packaged with pallet
3) Post : hot dip galvanized surface will loose loading in the container
4)Post : PVC coated single package with bubble wrap
5)Fittings : woven bags and carton box
6)If LCL then packing with pallet
