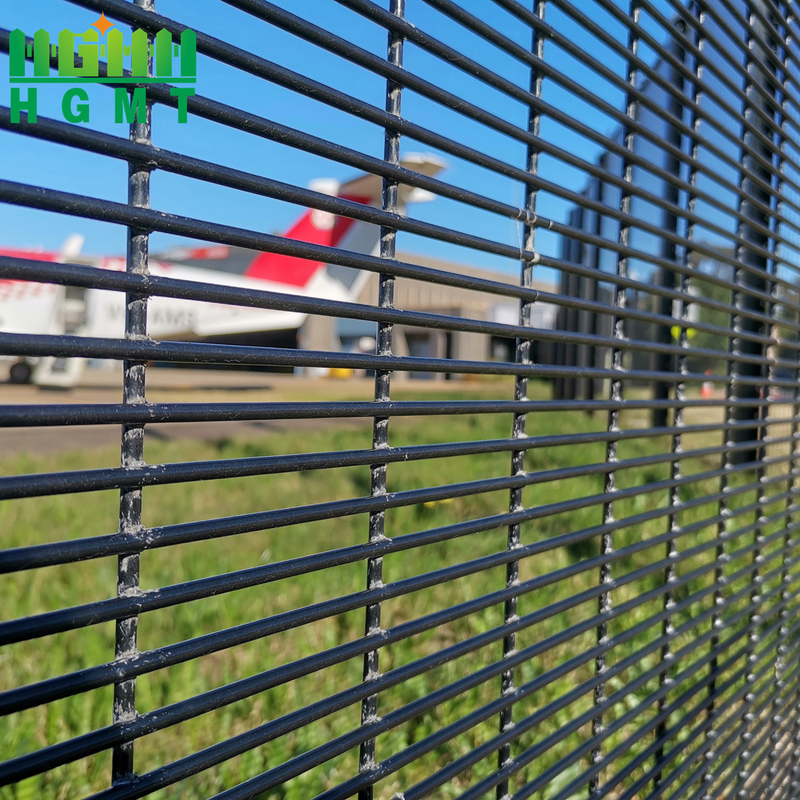

Heavy Duty Clear View Fence Panel High Security Wire Mesh 358 Anti Climb Fence With Barbed
High-Quality Edge Protection Mesh Fence with Customizable Options
Tailored Safety Solutions for Your Unique Project Requirements
Precision-Engineered Mesh Protection with Unlimited Flexibility
Our High-Quality Edge Protection Mesh Fence system redefines perimeter safety with fully customizable configurations. Designed for architects, contractors, and safety managers who demand both superior protection and design flexibility, our modular mesh fencing adapts perfectly to any elevated work environment while maintaining uncompromised safety standards.
Security Fencing Specifications
| mesh panel height |
0.9m-3m |
| mesh panel width |
2m,2.2m,2.5m,3m |
| hole opening |
12.7mmx76.2mm(0.5''x3'') |
| wire thickness |
4mm |
| material |
low carbon steel wire |
| finished |
hot dipped galvanized,powder coating |
| polyester painting color |
any RAL series color(normal RAL 6005-dark green,RAL9005-black) |
| curves |
on request |
| C post |
62mmx83mmx3mm |
| round post |
outside diameter:80mmx3mm |
| rectangular post |
60mmx60mmx3mm,80mmx80mmx3mm, 60mmx120mmx3mm , 100mm x 100mm x 3mm |
| post length |
on request(normal 2.3mm-4m) |
| material |
square steel pipe,round steel pipe,C type steel |
Advanced Customization Features
1. Structural Customization
-
Height Options: 900mm | 1200mm | 1500mm | 2000mm
-
Panel Widths: 1m, 1.5m, 2m modular sections
-
Material Choices:
-
Galvanized steel mesh (standard)
-
Stainless steel (for corrosive environments)
-
Aluminum alloy (lightweight option)
2. Mesh Configuration
-
Pattern Selection: Diamond | Square | Hexagonal
-
Opening Sizes: 30×60mm | 50×50mm | 75×150mm
-
Wire Thickness: 3mm to 6mm diameter
3. Visual & Functional Upgrades
4. Mounting Systems
-
Fixed Installations: Concrete foundations | Steel base plates
-
Temporary Solutions: Weighted bases | Mobile trolley systems
-
Special Adaptors: Curved radius connectors | Angled corner units
Anti Security fence advantage
What's material of snake fencing?
High quality Q235 low carbon steel, galvanized steel wire, raw steel wire
Features of snake fencing
ANTI-CLIMB: More small openings,no toe or finger can put inside.
ANTI-CUT: robust wire and welded joints make cutting very difficult.
Colors can choose:
Dark Green, silver and Black.Other colors are available on request.
Technical Excellence
✔ Tested to 1.5kN/m horizontal load (exceeds EN 13374)
✔ Wind load optimized - 40% less wind resistance than solid panels
✔ Vibration dampening - Specialized for bridge and high-wind applications
✔ Modular design - Expandable/reconfigurable as projects evolve
Industry-Specific Solutions
-
Construction: Custom heights for scaffolding edge protection
-
Energy: Non-sparking versions for oil/gas facilities
-
Transportation: High-impact versions for highway work zones
-
Events: Quick-release panels for temporary crowd control
The Customization Process
-
Consultation: Our engineers assess your site requirements
-
Configuration: Digital prototyping with 3D modeling
-
Approval: Review technical drawings and load calculations
-
Fabrication: Precision manufacturing of your custom system
-
Installation: On-site support availabl
Why Customize with Us?
✅ Single-Source Responsibility - From design to installation
✅ Future-Proof Systems - Add/remove panels as needs change
✅ Regulatory Assurance - Full documentation for compliance audits
✅ Aesthetic Control - Match corporate colors or architectural schemes
Fittings:
1. Woven bags and carton box
