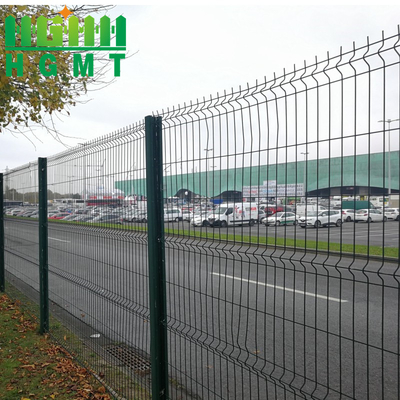

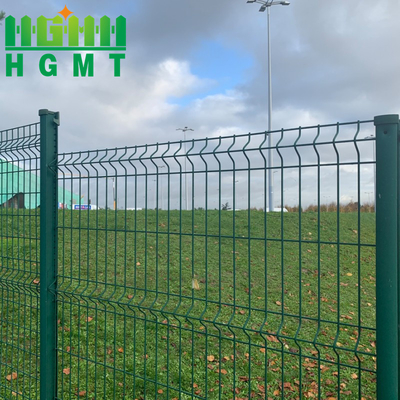

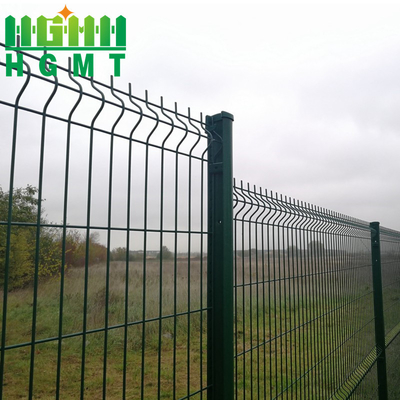

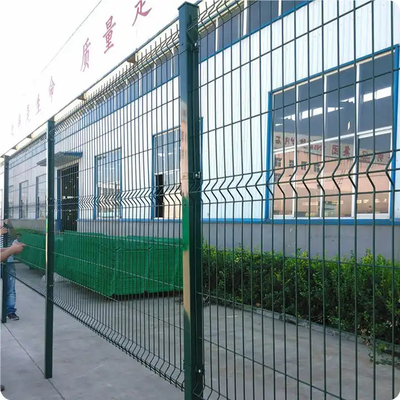

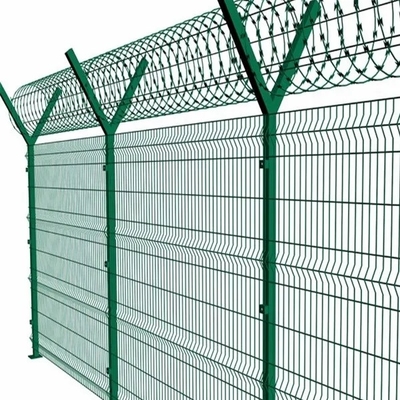

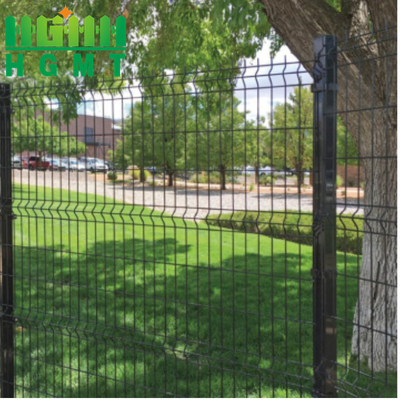

Garden Buildings Supplies Outdoor Metal Material 3D Bending Curved Welded Steel Wire Mesh Easily Assembled Fence Panel
Welded Wire Fence also called guardrail, protective net, fence, isolation fence, etc., is a variety of prote-ction Fence
protection net general name. Generally used stainless steel wire, steel wire, Galvanized wire is welded and then processed by dipping. The grid structure is beautiful and the field of view is open Wide, style, high strength, good steel, beautiful shape and other characteristics, installation is not subject to ter-rain Fluctuation limit, simple and convenient. It plays both a protective role and a beautifying role. Mainly use Isolation and protection of roads, railways, stadiums, residential areas, villas and other places.
Main application markets
3D Fence is mainly popular in Japan, South Korea, Southeast Asia and Europe.
Surface treatment
Post type
Post Installation
Mesh Fence Panel Size and V-bend Number
The length of the fence panel normally is 2500mm.
The height of the fence panels are different according to different usage.
Anyway, the panel size and V-bend number can be customized as customers request.
V Mesh Security Fencing Specification
| Material |
Low carbon steel, hot galvnaized steel |
| Height |
800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm |
| Post distance |
2000mm, 2500mm |
| Wire diameter |
4.0mm, 4.5mm, 5.0mm, 6.0mm |
| Mesh size |
50 x 200mm |
| Post |
Square post: 50 x 50mm, 60 x 60mm, 80 x 80mm
Rectangle post: 40 x 60mm, 40 x 80mm, 50 x 70mm
Peach post: 50 x 70mm, 70 x 100mm
I post: 44 x 70mm, 55 x 100mm |
| Surface treatment |
Low carbon steel+hot dipped galvanized
Hot galvanized steel+powder coated
Hot galvanized steel+pvc coated |
| Color |
dark green, black, white, yellow, grey, blue and so on |
Quality Control
Our professional quality control department wil test the quality during in the production process and after the production fnished to make sure all products are standard.We also accept inspections from professional institutions,such as SGs, BV etc.
