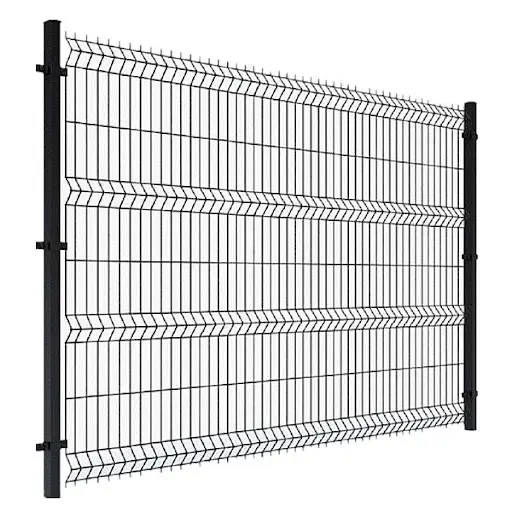

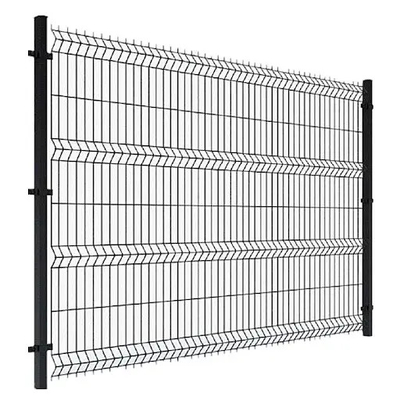

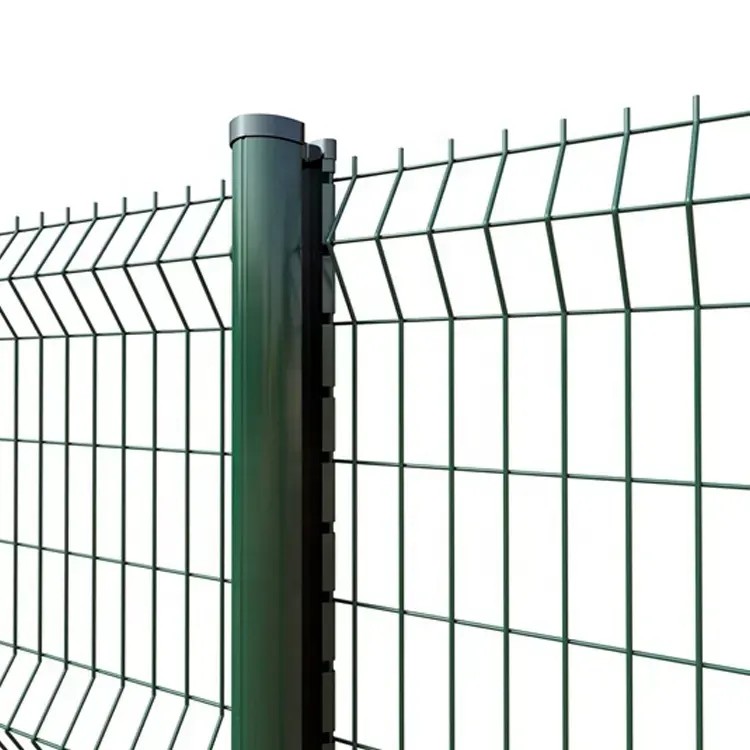

Factory wholesale 3D Bending Welded Wire Mesh Fence Pvc Coated Rust-proof
V Mesh Security Fencing Information
Horizontal "V" beams provide additional rigidity to the panels
The mesh is typically 200mm x 50mm (beam area is approximately 100mm x 50mm)
Non-standard panel designs available (minimum production quantities required)
Made of galvanized wire
Height range is 1230mm* – 2430mm*
Panels are typically produced 3.00m wide (approximately 20% less installation and post cost compared to 2.50m wide panels)
Nominal panel height, actual panel height may vary by design.
| Material |
Low carbon steel, hot galvnaized steel |
| Height |
830mm, 1030mm, 1230mm, 1530mm, 1830mm, 2030mm |
| Post distance |
2000mm, 2500mm |
| Wire diameter |
4.0mm, 4.5mm, 5.0mm, 6.0mm |
| Mesh size |
50 x 200mm |
| Post |
Square post: 50 x 50mm, 60 x 60mm, 80 x 80mm
Rectangle post: 40 x 60mm, 40 x 80mm, 50 x 70mm
Peach post: 50 x 70mm, 70 x 100mm
I post: 44 x 70mm, 55 x 100mm |
| Surface treatment |
Low carbon steel+hot dipped galvanized
Hot galvanized steel+powder coated
Hot galvanized steel+pvc coated |
| Color |
dark green, black, white, yellow, grey, blue and so on |
Surface Treatment
1,Hot-dipped galvanized after black wire welded
2,PVC coated after galvanized wire welded
3,PE coated after galvanized wire welded
Bendings
Quality Control
Our professional quality control department wil test the quality during in the production process and after the production fnished to make sure all products are standard.We also accept inspections from professional institutions,such as SGs, BV etc.
Packing terms
1) Panel: hot dip galvanized and PVC coated surface treatment will loose loading in the containe
2) Panel: powder coated need to be packaged with pallet
3) Post : hot dip galvanized surface will loose loading in the container
4)Post : PVC coated single package with bubble wrap
5)Fittings : woven bags and carton box
6)If LCL then packing with pallet
Factory picture
Company certificate
