High Standard Palisade Galvanised Metal Security Fencing 2100mm Tall Square Post
  • High Standard Palisade Galvanised Metal Security Fencing 2100mm Tall Square Post
  • High Standard Palisade Galvanised Metal Security Fencing 2100mm Tall Square Post
  • High Standard Palisade Galvanised Metal Security Fencing 2100mm Tall Square Post

High Standard Palisade Galvanised Metal Security Fencing 2100mm Tall Square Post

Place of Origin China
Brand Name Giant Fence
Certification ISO9001:2001
Model Number GF080
Product Details
Name:
Palisade Fence
Width:
2750mm Per Bay Or As You Requirement
Height:
1200mm To 3600mm
Pale Type:
D Type, W Type, Or Angle Steel Type
Head Type:
Pointed, Triple Pointed, Rouned, Rouned And Notched, Flat , Star
Pale Thickness:
1.5mm-/3.0mm
Angle Rail:
50x50*5mm,40*40*4mm,
RSJ Post:
100*55*3.5mm
Fish Plate:
150*30*7mm
Surface Treatment:
Galvanized And Powder Coated.
Highlight:

iso palisade galvanised metal security fencing

,

2100mm palisade galvanised metal security fencing

,

high standard galvanized steel palisade fencing

Payment & Shipping Terms
Minimum Order Quantity
50sets
Price
Negotiable
Packaging Details
1. panels packing with pallet post bulk in the container 2. panel with post all bulk in the container 3. panle with post all packing with pallet
Delivery Time
15-18days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000meters per month
Product Description

Customized Heavy Duty Palisade Fence Panels Curved Top Palisade Fencing W Shape





Product Description



European-style mesh adopts Q235 steel wire cold drawn steel wire, low carbon steel wire, steel wire cold drawn steel wire for the braided welding bending process, the specification is 1.8m high and 2.5m wide. And carry out the corresponding resistance treatment: electro-osmosis protection hot-dip galvanizing, spraying, dipping and stainless steel wire, etc. Especially the PVC steel wire fence is reliable in price and durable. Durable. Strong corrosion resistance, 10 years of quality and durability.



Palisade Fencing Specifications



Specifications
Finish
hot dipped Galvanised, powder coated
Height
1500mm, 1800mm, 2100mm, 2400mm, 3000mm etc.
Width
2750mm, 3000mm, etc.
Pales numbers
17 pcs,
Pales details
50 x 50 x 5 RSAPale type: "W" "D" "V", thickness 2mm, 2.3mm, 2.5 mm,
Palisade Top Rail
50 x 50 x 4mm, 50 x 50 x 5mm,
Post Type
Square post, H post

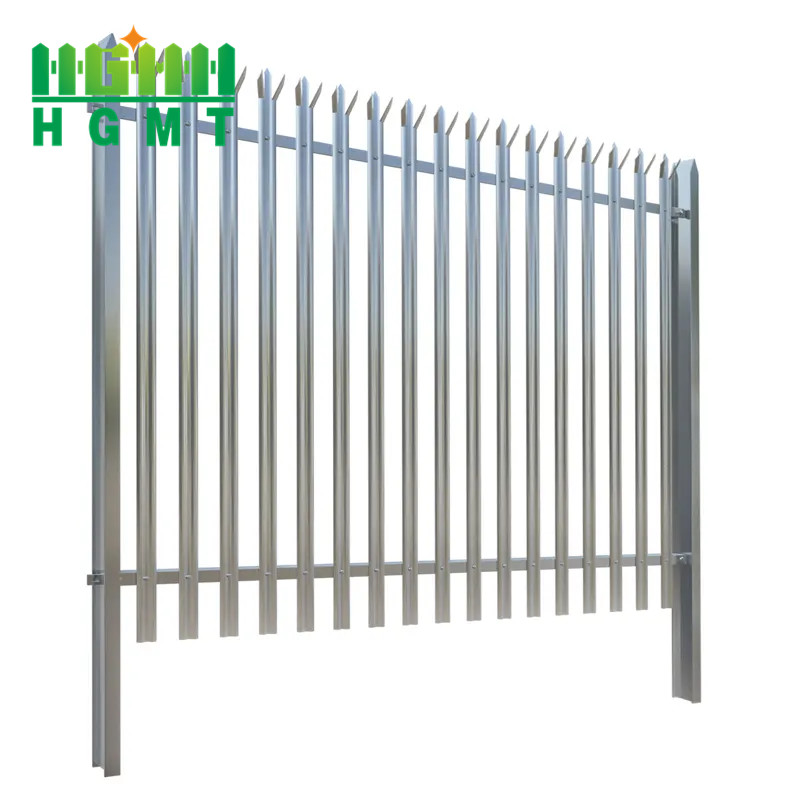

UK BS1722 Standard all 2 rails palisade fence bays of 2.75m includes:



  • 1 Palisade Fencing Posts
  • 17 Palisade Fencing Pales
  • 1 Palisade Fencing Top Rail
  • 1 Palisade Fencing Bottom Rail
  • 2 Palisade Fencing Fish plates
  • 4 Palisade Fencing Anti Tamper M12 Bolts
  • 34 Palisade Fencing Anti Tamper M8 Bolts

It is widely accepted as the industry leader to protect and deter general attack from all types and conditions of intrusion.

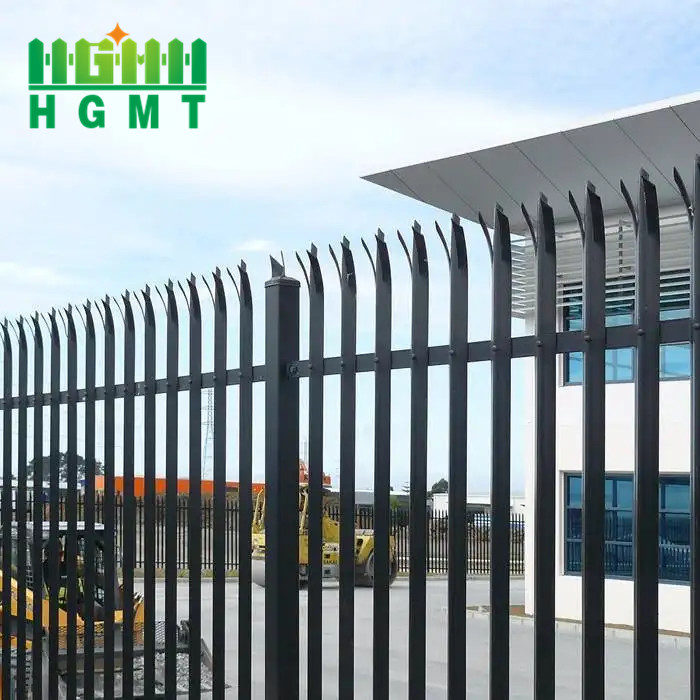

Palisade fence is constructed using a post, rail and paling system. The security level of the fence can be increased by increasing the height of the fence, adding the pale numbers of each panel or increasing the thickness of the pale. The pales are made from hot formed and cold rolled steel belt,These belt offer both strength and rigidity combined with a long life span
.






High Standard Palisade Galvanised Metal Security Fencing 2100mm Tall Square Post 0

High Standard Palisade Galvanised Metal Security Fencing 2100mm Tall Square Post 1



High Standard Palisade Galvanised Metal Security Fencing 2100mm Tall Square Post 2

High Standard Palisade Galvanised Metal Security Fencing 2100mm Tall Square Post 3
