Hot selling South Africa Anti Climb Prison 358 Fence Panels Wire Mesh Anti-Climb High Security Fencing

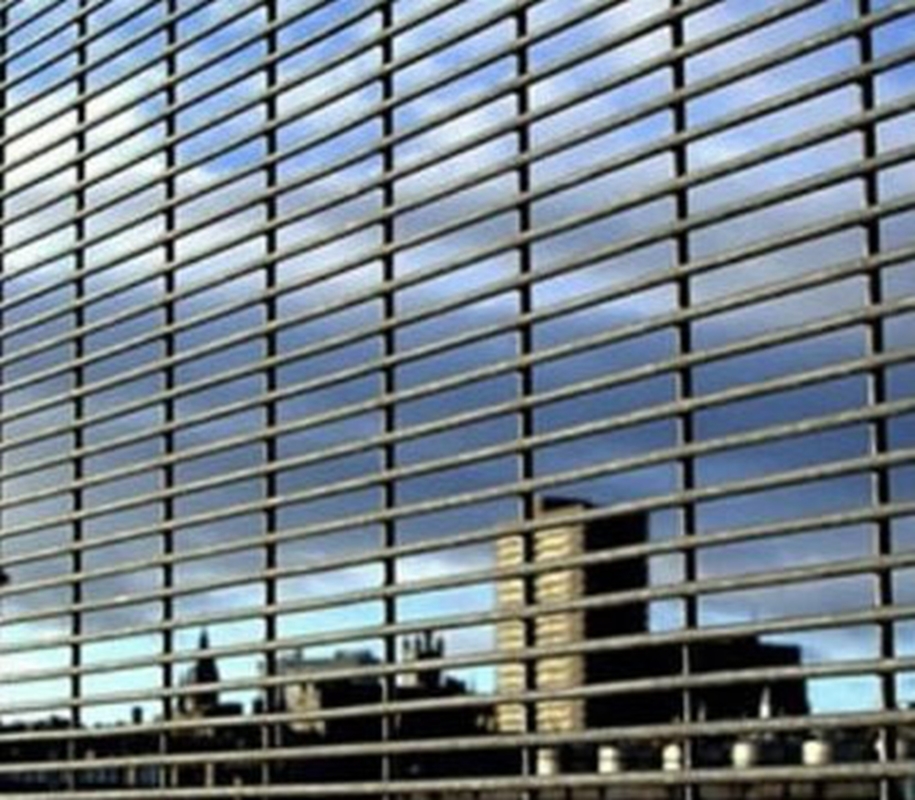

358 Fencing Detail
•'358' comes from its measurements 3" x 0.5" x 8 gauges which equates to approx. 76.2mm x 12.7mm x 4mm (Length x height x Diameter) in metric.
•358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools.
•358 fences are recognized as one of the most difficult breakthrough barriers, because it is difficult to climb. It is called security fencing and high- strength fencing.
•358 security fencing panel can be bent in part to enhance the aesthetic effect.
358 Fencing Specification
| Panel –Type A |
| Mesh |
Wire Diameter |
Surface
Treatment
|
Panel
Width
|
Panel Height |
|
76.2x12.7mm
75.0x12.5mm
|
Horizontal Wire: 3.0, 3.5, 4.0mm
Vertical Wire:
4.0mm
|
Electric Galvanized + powder/PVC coated
or
hot dipped galvanized
|
2.2m or 2.5m |
1800mm
2000mm
2100mm
2200mm
2400mm
2500mm
3000mm
|
|
Note: Welded Strength – 75% of the minimum tensile strength of the wire;
Tensile Range: 540-690N/m2
|
Feature
- Anti-climbing: more small openings, no toe or finger holds.
- Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
- High strength welded at each intersection.
- Durable: covering Galfan and polymer powder coating ensure a long service life.
- Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.
Packing terms
Fence Panels:
1> it has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2> it has 4 metal corners to keep the pallet more strong.
3> it has metal plate under the plastic bandage to reduce the apressure of fence panels.
4> it has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.
Fence Post:
Each fence post is covered by cap (save your installing time and cost of labor) then with plastic film, then metal pallet.
Accessories:
Clips and screws are packed by sets, plastic film + carton box.
