V Mesh Security Fencing Specification

1. Material:low carbon iron wire, galvanized iron wire, stainless steel wire and pvc coated wire
2. Wire diameter;2mm-5mm
3. mesh opening size:50mm*50mm, 50mm*100mm, 50mm*200mm, 75mm*150mm, 76.2mm*12.7mm
4. fence height;0.5-2.1m
5. fence Length:3m, 2.5m,2m, or as per your request
6.  fence panel size: 2.5m*2.1m, 3m*1.8m,etc.
7.  processing type Assortment:
Electro galvanized before/after welded
Hot dippedgalvanized before/after welded
hot dip galvanized and then pvc coated
PVC coated welded mesh panels
or paiting surface/powder coated
8.  square post thickness; 1mm-3mm
post diameter; 40mm,50mm,60mm,75mm,80mm
2mm*50mm*50mm, 2mm*60mm*60mm

9.  Color:

The wire fence has rich colors: Green RAL6005, Black RAL9005, Blue, Grey, Brown, Yellow and other colors as your request

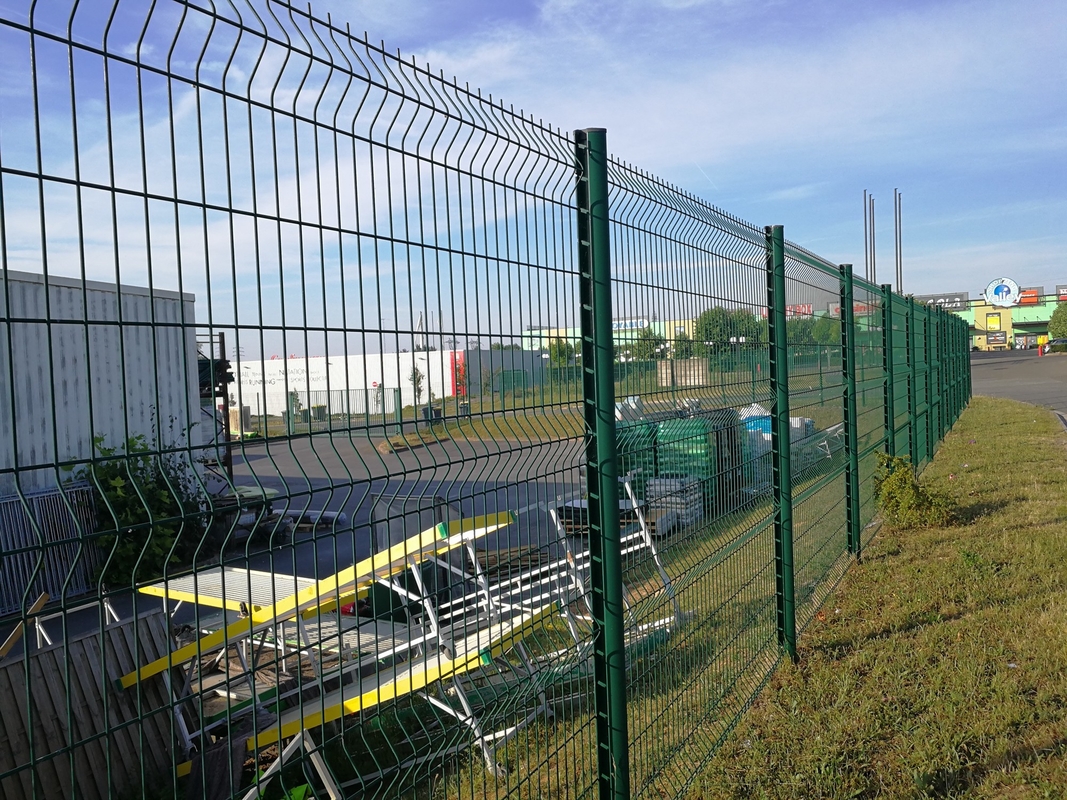

V Mesh Security Fencing with Cylinder Post Description

V Mesh Security Fencing with Cylinder Post is fixed all the panel with post by plastic or steel clamps. Due to its versatile appearance it can be used for a number of different premises, surrounding large areas without restricting the view., it has simple structure ,easy installation and nice appearance

The panel with curves more stable and stronger. It is one of the easiest ways to ensure that your property is kept secure.

Due to it’s versatile appearance it can be used for a number of different premises, surrounding large areas without restricting the view.

This systems is ideal for basic demarcation. Mainly applied to public areas such as schools, parks, sports arenas and many other residential areas due to its rigidity and aesthetic appeal. It is the perfect deterrent for any commercial business wanting the extra security edge.

V Mesh Security Fencing Application

1. Commercial grounds (Corporation, hotel, supermarket)
2. Private grounds (Courtyard, Villadom)
3. Public grounds (Park, zoo, train or bus station, lawn);
4. Road and transit (Highway, railway or road city transit);
5. 3D fence is used as decoration or protection for various facilities in industry,agriculture, transport, etc.

V Mesh Security Fencing Feature

1. There have the Triangle shape Bending on the panel. And the bending No.s depend on the panel’s height
2. There should be steel and plastic clips using to connect the panel with the post
3. The post can welded based on the end and also can bury into the ground
4. The surface can do there types :1) hot dip galvanized after welded 2) Galvanzied+powder coating 3) Galvanzied+PE coating

Specifications Of the Sqaure Post

V Mesh Security Fencing process

1. Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading

2. Post cutting--punching hole on the post -- Powder coating--Loading

Packing terms

1. Panel and post all bulk in the container
2. Panel with pallet (steel or wooden material) post packing using bubble film bulk in the container
3. Panel and post all packing with pallet in the container
4. All the clips and caps packing in the carton box
