Triangular Bending Wire Mesh Fence 3D V Mesh Powder Coating

Place of Origin Hebei, China
Brand Name Giant Fence
Certification ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Model Number GF003
Minimum Order Quantity 50sets
Price Negotiable
Packaging Details 1.panel and post all bulk in the container 2.panel with pallet and post bulk 3.panel and post all packing with pallet
Delivery Time 18-21days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 5000meter per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model Number V Mesh Security Fencing Wire Thickness 4.5-5.0mm
Opening Size 50*150mm Height 1.83m
Bending No 3 Metal Type Iron
Pressure Treated Wood Type Heat Treated Frame Finishing Powder Coating
Post Type Square Post Feature Sustainable, ECO FRIENDLY, FSC, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Tempered Glass, TFT, Waterproof
High Light

Powder Coating V Mesh Security Fencing


Triangular Bending Wire Mesh Fence


3D V Mesh Fence

Leave a Message
Product Description

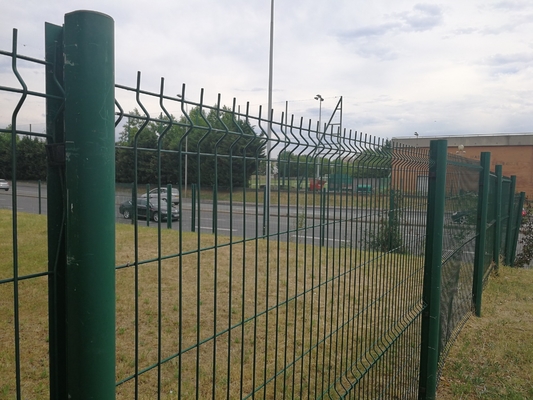

high quality Triangular bending wire mesh fence /3D wire mesh fence/V mesh fence




  • Offering a variable aperture mesh panel system that is both difficult to cut through and climb, the V Mesh Security Fencing profiled rigid mesh panel system is the next step in perimeter security solutions.
  • V Mesh Security Fencing looks great around public buildings, schools, retail premises and industrial buildings. Featuring steel security clips and hex bolts fastening each panel to the galvanised 60 x 40mm RHS steel posts, this fencing system is built to last.
  • V Mesh Security Fencing conforms to open mesh steel panel fences, providing excellent quality assurances
  • The welded steel wire mesh panels feature large upper profiles for extra strength and groups of 6 wires at 25mm wire centres followed by 45mm mesh apertures. This ever-popular decorative effect gives your fencing a uniquely stylish ‘striped’ appearance and offers increased security for your fence line.


Specification Of V Mesh Security Fencing


Height: 1800mm/2000mm/2400mm/3000mm* delete as required
Nominal Height: 1.8m/2.0m/2.4m/3.0m* delete as required
Mesh & Wire: 200 x 45mm (200 x 25mm Variable) mesh; 4mm vertical and 6mm horizontal nominal wire with 3 profiles, galvanised and polyester powder-coated to 60 microns.
Posts: 60 x 40 mm RHS, galvanised after manufacture and polyester powder-coated with 47 x 25 mm steel clips galvanised and polyester powder-coated to match fencing. (1800 – 2400mm Panels ONLY)


80 x 40 mm RHS, galvanised after manufacture and polyester powder-coated with 47 x 25 mm steel clips galvanised and polyester powder-coated to match fencing. (3000mm Panels ONLY)

Fixings: M8 x 95 Cup square bolt with permacone nut
Set Posts: Set posts in holes 300 mm diameter x 800** mm deep, filled not less than half the depth with concrete
Maximum Posts Centres: 3010mm
Bottom of Fencing to Be: approx. 50 mm above final ground level.
Other Requirements: Please contact us for details



1. Reduce mesh and prevent scaling

2. Thicker wires make the panel system stronger

3. Prevent cutting

4. Projects that can be used for a large number of personnel flow. For example, schools, colleges and universities.

5. Provide a higher level of protection


Application Of V Mesh Security Fencing

  1. Commercial grounds (Corporation, hotel, supermarket)
  2. Private grounds (Courtyard, Villadom)
  3. Public grounds (Park, zoo, train or bus station, lawn);
  4. Road and transit (Highway, railway or road city transit);
  5. 3D fence is used as decoration or protection for various facilities in industry,agriculture, transport, etc



1.Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading

2.Post cutting--punching hole on the post -- Powder coating--Loading


Triangular Bending Wire Mesh Fence 3D V Mesh Powder Coating 0Triangular Bending Wire Mesh Fence 3D V Mesh Powder Coating 1Triangular Bending Wire Mesh Fence 3D V Mesh Powder Coating 2
