Low Risk Encino Powder Coating Welded 1800mm Security Steel Fence
Place of Origin | Hebei, China |
---|---|
Brand Name | Giant Fence |
Certification | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
Model Number | GF003 |
Minimum Order Quantity | 50sets |
Price | Negotiable |
Packaging Details | 1.panel and post all bulk in the container 2.panel with pallet and post bulk 3.panel and post all packing with pallet |
Delivery Time | 18-21days |
Payment Terms | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability | 5000meter per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel Number | Powder Coating V Mesh Security Fencing | Wire Diameter | 4.0mm |
---|---|---|---|
Opening Size | 50*200mm | Height | 1830mm |
Width | 2500mm | Bending No | 3 |
Frame Finishing | Powder Coating | Color | Green /blue |
Feature | Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Tempered Glass, TFT, Waterproof | Application | Residential,School |
Highlight | 1800mm security steel fence,1800mm security metal fence,4.0mm security steel fence |

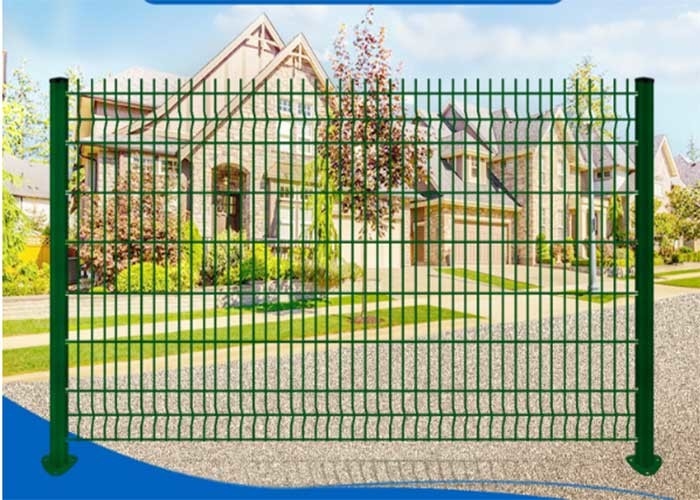

Fold Fence Iron Wire V Mesh Security Fencing
Description
- V Mesh Security fencing has to be right and good. Whether you need to keep people and animals in or out of a building or an area, it’s crucial to have the standard of security barriers in place that will get the job done
- The V Mesh Security Fencing feature large upper profiles for extra strength and groups of 6 wires at 25mm wire centres followed by 45mm mesh apertures. This ever-popular decorative effect gives your fencing a uniquely stylish ‘striped’ appearance and offers increased security for your fence line.
- V Mesh Security Fencing looks great around public buildings, schools, retail premises and industrial buildings. Featuring steel security clips and hex bolts fastening each panel to the galvanised 60 x 40mm RHS steel posts, this fencing system is built to last.
Feature
• Horizontal “v” shaped beams give the panels extra rigidity
• Mesh apertures generally 200mm x 50mm
• Non Standard panel designs are available (minimum production quantity required)
• Produced from Galvanised wire to BS EN 10244-2:2001 class D
• Suitable for multi – lift installations
• Range of wire available from 3.90mm - 7.50mm diameter
• Range of heights available from 1030mm* - 3030mm*
• Panels are normally produced 3.00m wide (reducing installation & post costs by approx 20%, when compared with a 2.50m wide panel)
* Nominal panel heights, actual panel heights may vary with design
Specification
Line wire x Cross wire |
Hole Size | Panel Length | Panel Height | Bending No. | Common Color | Surface treatment |
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm 6x5mm 6x6mm |
50X100mm 50X200mm 55X200mm 75X150mm 100X300mm
|
2m 2.2m 2.4m 2.5m 2.8m 3m |
830mm | 2 |
Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010 |
1.Hot-dipped galvanized after black wire welded 2.PVC coated after galvanized wire welded 3.PE coated after galvanized wire welded |
Specifications Of the Sqaure Post
Post view | Size | Thickness | Panel height | Base post | Normal post | Surface treatment |
Square post |
40*40mm 50*50mm 60*60mm |
1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2mm 2.5mm |
830mm | 850mm | 1200mm |
1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
1030mm | 1050mm | 1400mm | ||||
1230mm | 1250mm | 1600mm | ||||
1530mm | 1550mm | 2000mm | ||||
Rectangle post |
30*50mm 40*60mm 60*80mm |
1830mm | / | 2400mm | ||
2030mm | / | 2500mm | ||||
2230mm | / | 2800mm | ||||
2430mm | / | 3000mm |
3D Welded Wire Mesh Fence process
1.Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading
2.Post cutting--punching hole on the post -- Powder coating--Loading
Application
- Commercial grounds (Corporation, hotel, supermarket)
- Private grounds (Courtyard, Villadom)
- Public grounds (Park, zoo, train or bus station, lawn);
- Road and transit (Highway, railway or road city transit);
- 3D fence is used as decoration or protection for various facilities in industry,agriculture, transport, etc.
