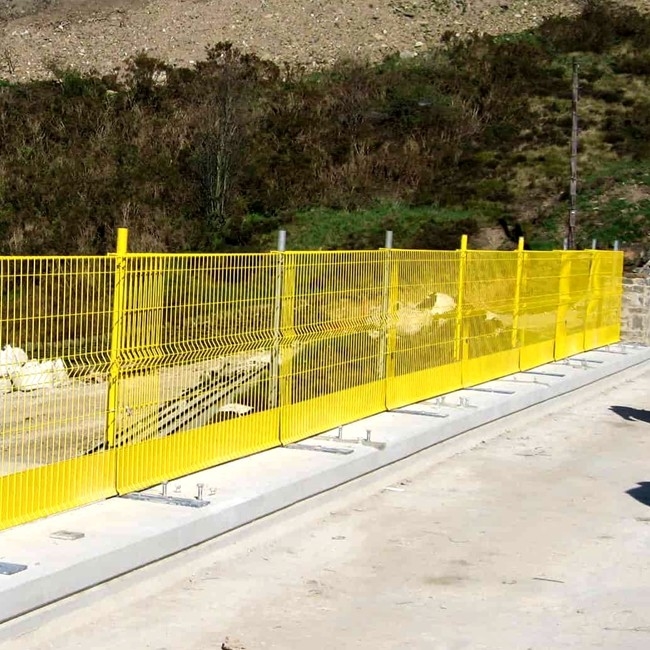

Polyester Powder Coating Edge Protection Barrier For Bridge Construction

Polyester powder coating Edge Protection Barrier for bridge construction

Key Features for Bridge Construction

• Polyester Powder Coating: Defense Against Bridge Site Hazards
  The barrier’s steel frame is treated with a premium polyester powder coating, applied via electrostatic spray and cured at high temperatures to form a dense, uniform protective layer. This coating offers:
  • Superior Corrosion Resistance: Shields against moisture, saltwater (for bridges over water), road de-icing chemicals, and humidity—preventing rust and degradation even in prolonged wet conditions.
  • UV and Weather Resistance: Resists fading, chalking, or brittleness from direct sunlight, rain, snow, and extreme temperature fluctuations, ensuring the barrier remains visible and functional for the project’s duration.
  • Impact and Abrasion Resistance: Withstands scratches from tools, bumps from heavy machinery (cranes, concrete mixers), and debris typical in bridge construction, maintaining its protective integrity.
• Structural Strength for Elevated and Heavy-Duty Use
  • High-Gauge Steel Construction: Fabricated with 5mm–7mm wire diameters and reinforced frames to withstand lateral loads up to 150kg (330 lbs), critical for resisting impacts from workers, equipment, or strong winds on elevated bridge structures (girders, decking, scaffolding).
  • Modular Design: Panels (1.05m–2.6m in height) connect via tool-free, corrosion-resistant hinges, allowing customization to bridge contours—straight sections for deck edges, angles for piers, or curves for arch bridges.
  • Secure Anchoring: Compatible with bridge-specific anchors (welded brackets, bolt-down plates, or clamp systems) to secure the barrier to steel girders, concrete parapets, or temporary scaffolding, even in high-vibration environments.

Safety and Compliance

• High Visibility: Coated in OSHA/EN-recommended safety colors (yellow, orange) to stand out against steel, concrete, or water, alerting workers to edge hazards in busy construction zones or low-light conditions (dawn, dusk, or fog).
• Compliance: Meets EN 13374 (temporary edge protection) and bridge construction safety standards (e.g., Eurocode 3 for steel structures), ensuring it protects against falls from heights—critical for workers on unguarded bridge edges.
• Debris Control: Tight mesh spacing (50×100mm) prevents tools, bolts, or concrete fragments from falling off the bridge, protecting workers below or pedestrians/vehicles on underlying roads/waterways.

Long-Term Value

Our Edge Protection Barrier Specifications

When ordering in large quantities, you have the option of imprinting the customer's logo and colors.Various matching accessories are available to provide solutions for various on-site situations.

Our Edge Protection Barrier Cases:

we offer a wide range of safety solutions to reduce on site accidents. Our pioneering edge protection barriers prevent employees from injury. Whether they are working at ground level or on elevated platforms, we have a selection of building site edge protection safety measures to make sure they are protected while they work.

Our Edge Protection Barrier advantage

1. Our products are versatile and durable - made from high quality materials, hot-dipped galvanized and manufactured to the highest standards of finish!

2. Our products are highly modular and simple to operate and install.One-touch installation! Very convenient and effective!

3. High development capacity for innovative smart solutions customized to customer needs

4. Our fence panels are curved at the top and bottom, and are uniquely designed to provide maximum strength and prevent excessive bending of the net.

5. The uniformity of the installation allows for maximum supervision and control, thus maintaining a high level of safety at all stages of construction.

No items will fall apart to prevent loss.Convenient and effective packaging for long term product storage and easy transportation
