One of the most sought-after customizable options is the ability to select powder coat colors tailored to specific needs. Whether for high visibility (OSHA-recommended safety yellow, orange, or red) to highlight edge hazards, or brand-aligned hues (corporate blues, greens, or grays) to reinforce identity, the powder coating process accommodates precise color matching. This ensures the barrier integrates seamlessly with worksite aesthetics—whether blending into industrial settings or standing out in busy construction zones.
Powder-coated edge protection barriers can be customized in size to fit unique platform or edge requirements. From shorter barriers (36 inches) for low-risk areas to taller designs (60+ inches) for high perimeters, the frame and rails are cut, welded, and coated to specific dimensions. Widths of individual sections are also adjustable (4–8 feet) to cover long edges without gaps, while custom post spacing (2–6 feet) adapts to high-traffic zones or equipment access points. Each component is powder-coated after fabrication, ensuring the finish adheres evenly even on non-standard shapes.
To suit environmental demands, the powder coating itself offers customizable thickness and finishes. For high-wear areas (e.g., industrial platforms with frequent tool contact), a thicker coating (6–8 mils) provides enhanced durability against scratches and impacts. In corrosive environments (outdoor platforms, coastal areas), a specialized anti-corrosion powder (with added zinc or epoxy primers) boosts rust resistance. Finish options range from matte to high-gloss, with textured coatings available to reduce glare or hide minor scuffs—ensuring both functionality and appearance align with needs.
For barriers requiring access (e.g., near staircases, doors, or equipment), custom cutouts or removable sections can be integrated—all with matching powder coating. Hinged gates, sliding panels, or quick-release sections are fabricated to specific sizes, then coated to match the barrier’s frame, maintaining a uniform look. These access points are designed to lock securely when closed, ensuring safety isn’t compromised, while the powder coating on moving parts resists wear from repeated use.
Customizable add-ons, such as warning signs, reflective strips, or tool hooks, can be powder-coated to match the barrier, creating a cohesive design. Metal sign plates or brackets are pre-treated and coated in the same color, preventing mismatched finishes. Reflective tape or decals are applied over the powder coating (or in pre-cut recesses) to enhance visibility without disrupting the barrier’s aesthetic. These additions are tailored to worksite needs—from “Caution: Fall Hazard” signs to hooks for securing tools—while maintaining the barrier’s protective integrity.
For regulated industries, powder-coated barriers can be customized to meet specific standards (OSHA, EN 13374) through design tweaks—such as adding mid-rails, toeboards, or reinforced joints—all powder-coated to ensure compliance with finish requirements. The coating’s chemical composition can also be adjusted to meet environmental regulations (e.g., low-VOC formulas for green building projects), ensuring the barrier is both safe and sustainable.
This blend of customization and powder coating durability makes the barrier a versatile solution: it protects edges effectively, adapts to unique worksite needs, and maintains a professional, long-lasting finish—proving safety and customization can go hand in hand.
Our Edge Protection Barrier Specifications
| Wire Diameter |
Mesh Size |
Height |
Length |
Post |
Thinckness |
Color |
|
5mm
6mm
7mm
|
50*100mm
50*150mm
100*200mm
|
1.05m
1.10m
|
1.3m--2.6m |
48mm |
1.5mm
1.8mm
2.0mm
|
Yellow
Blue
Red
Other RAL color
|
When ordering in large quantities, you have the option of imprinting the customer's logo and colors.Various matching accessories are available to provide solutions for various on-site situations.

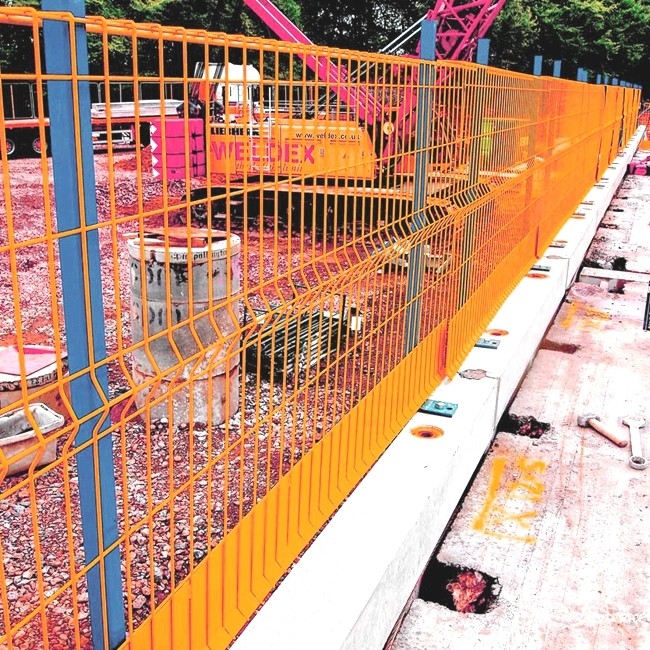

Our Edge Protection Barrier Cases:
we offer a wide range of safety solutions to reduce on site accidents. Our pioneering edge protection barriers prevent employees from injury. Whether they are working at ground level or on elevated platforms, we have a selection of building site edge protection safety measures to make sure they are protected while they work.
Our Edge Protection Barrier advantage
1. Our products are versatile and durable - made from high quality materials, hot-dipped galvanized and manufactured to the highest standards of finish!
2. Our products are highly modular and simple to operate and install.One-touch installation! Very convenient and effective!
3. High development capacity for innovative smart solutions customized to customer needs
4. Our fence panels are curved at the top and bottom, and are uniquely designed to provide maximum strength and prevent excessive bending of the net.
5. The uniformity of the installation allows for maximum supervision and control, thus maintaining a high level of safety at all stages of construction.
No items will fall apart to prevent loss.Convenient and effective packaging for long term product storage and easy transportation
