Hot Dip Galvanized Retaining Wall Defensive Bastion Hesco Barriers Blast Wall
Hesco Barriers Blast Wall Introduction

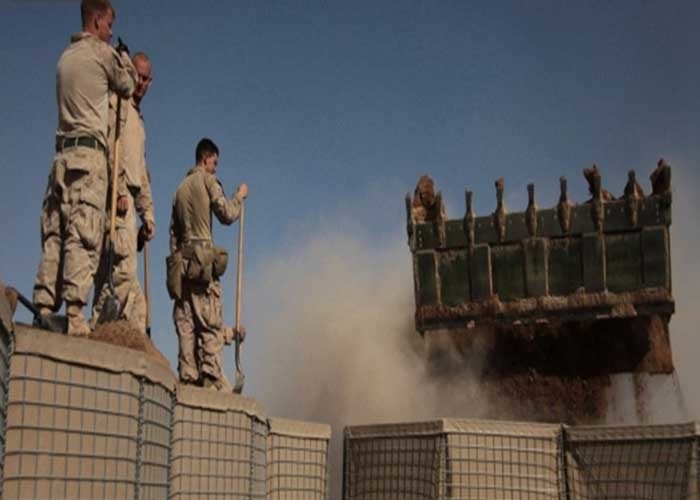

HESCO barriers are also known as rock basket retaining walls,HESCO barriers, flood barriers, etc. Steel welded mesh and lined non-woven geotextiles can be filled with sand, earth, cement, and stone and used as a defense wall or fuel for military security.
Hesco Barriers Blast Wall Specifications
| Material |
galvanized wire,hot dipped galvanized wire,hot dipped galvanized after welding,galfan steel wire , Alu-zinc coated wire. |
| mesh wire diameter |
3mm,4mm,5mm,6mm and so on . |
| Mesh hole Size |
50x50mm, 75x75mm, 76.2x76.2mm, 50x100mm, 100x100mm, as your request . |
| Spring wire diameter |
3mm,4mm,5mm,6mm etc . |
| army bastion Finished |
Hot dipped galvanized and galfan . |
| steel wire barriers Geotextile |
In heavy duty non-woven polypropylene . |
| steel wire barriers Geotextile color |
beige-sand, olive green,gray etc . |
| steel wire barriers Geotextile thickness |
300g/m2, 350g/m2, 400g/m2 . |
| common size |
0.61x0.61x0.61m 2Cells, 1x1x1m 10Cells, 1.37x1.06x1.06m 9Cells, 1x1.5x1m 10Cells, 0.61x0.61x0.61m 5Cells, 1.68x0.61x0.61m 5Cells, 2.21x2.13x2.13m 13Cells, 1.37x1.22x1.10m 9Cells as your request . |
| Package |
Warapped with shrink film then packed in pallet,and the last packed with steel belt . |
| Hesco Barriers |
| PRODUCT |
HEIGHT |
WIDTH |
LENGTH |
| MIL1 5442 R |
54''(1.37M) |
42''(1.06M) |
32'9''(10M) |
| MIL2 2424 R |
24''(0.61M) |
24''(0.61M) |
4'(1.22M) |
| MIL3 3939 R |
39''(1.00M) |
39''(1.00M) |
32'9''(10M) |
| MIL4 3960 R |
39''(1.00M) |
60''(1.52M) |
32'9''(10M) |
| MIL5 2424 R |
24''(0.61M) |
24''(0.61M) |
10'(3.05M) |
| MIL6 6624 R |
66''(1.68M) |
24''(0.61M) |
10'(3.05M) |
| MIL7 8784 R |
87''(2.21M) |
84''(2.13M) |
91'(27.74M) |
| MIL8 5448 R |
54''(1.37M) |
48''(1.22M) |
32'9''(10M) |
| MIL9 3930 R |
39''(1.00M) |
30''(0.76M) |
30''(9.14M) |
| MIL10 8760 R |
87''(2.21M) |
60''(1.52M) |
100'(32.50M) |
| MIL11 4812 R |
48''(1.22M) |
12''(0.30M) |
4'(1.22M) |
| MIL12 8442 R |
84''(2.13M) |
42''(1.06M) |
108'(33M) |
|
Hesco Barriers Blast Wall Feature
1. A pre-fabricated gabion of galvanized welded mesh steel fitted with a UV-protecting.
2. Polypropylene geo-textile liner.
3. Filling material is an easy- obtained mix of sand and small stones.
4. It can be used together to any length, and can be stacked for additional height.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. bulk in the container
