100*100mm Mesh Blast Wall Hesco Mil Blast Wall Basket

Place of Origin China
Brand Name HGMT
Certification ISO9001:2008
Model Number GF1283
Minimum Order Quantity 50 sets
Price Negotiable
Packaging Details 1. packing in the pallet 2. bulk in the container
Delivery Time 20-25days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000meter per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Blast Wall Fencing Material Steel
Fabric Color Brown/green Wire Diameter 4.0mm/4.5mm/5.0mm
Mesh Size 76*76mm/50*100mm/100*100mm Shape Round/square Shape/ Rectangle
Surface Galvanized Wire Welded/Galfan Wire Welded/hot Dip Galvanized After Welded Packing Pallet
Size Mil 1B/1G -Mil 12B/12G Spring Size 4.0/4.5mm
High Light

Blast Wall Hesco Mil


100*100mm Mesh Hesco Mil


Hesco Mil Blast Wall Basket

Leave a Message
Product Description

China factory galvanized blast wall military sand wall Hesco Barrier Blast Wall
Hesco Barrier Blast Wall Introduction
Blast wall, also known as hesco mil, hesco barrier or hesco Bastion, is a modern gabion, mainly used for flood control and military defense. It is made of foldable wire mesh containers and heavy fabric lining and is used as a temporary or semi permanent dike or blast wall to protect against small arms fires and / or explosives. It has considerable use in Iraq and Afghanistan.
The blast wall is a prefabricated porous system made of galvanized steel welded mesh lined with non-woven geotextile. The unit can extend and attach pins using the connections provided. It's easy to install, uses minimal labor, and is usually available with equipment. Then it extends, it's filled with sand, stones, and the hesco barrier is like a defensive wall or bunker, which is widely used militarily for security.
Originally designed for beaches and swamps to prevent erosion and flood control, the hesco barrier quickly became a popular safety device in the 1990s. The hesco barrier continues to be used in its original use. In 2005, in the days between Katrina and Rita, they were used to reinforce the levees around New Orleans. In June 2008, 8200 meters (9000 yards) of hesco guardrail wall was transported to Iowa during a Midwest flood. In late March 2009, a 10700 meter (11700 yard) hesco barrier was transported to Fargo, North Dakota, to withstand flooding. In late September 2016, Cedar Rapids, Iowa, used a 10 mile hesco barrier during the fall 2016 flood.
Hesco Barrier Blast Wall Specification

Barrier size 0.61*0.61m,1.37*1.06m,1.37*1.22m,2.12*1.52m,2.21*2.13m
Wire diameter 3.8mm,4.0mm,4.5mm,5.0mm,etc.
Mesh size 50*50mm,65*65mm,76.2*76.2mm,80*80mm,100*100mm
Geotextile 200-400gr/m2 Heavy duty non-woven polypropylene,
color can be beige-sand, olive green,grey,white,etc
Spring diameter 3mm,4mm,5mm,etc.
Finish pre galvanized, galfan coated,hot dip galvanized
Packing Wrapped with shrink film then on pallet
Accessories Y post,Razor wire, Barbed wire


wire diameter Spring wire  Mesh Size
4.0mm/4.5mm/5.0mm 4.0mm/5.0mm 76*76mm/50*100mm/100*100mm
surface treatment 1.galvanized wire welded 2. hot dip galvanized after welded

Hesco Barrier Blast Wall Size

GM MIL1 54"(1.37M) 42"(1.06M) 329"(10M) 5+4=9 cells
GM MIL2 24" (0.61M) 24"(0.61M) 4(1.22M) 2 cells
GM MIL3 39"(1.00M) 39"(1.00M) 32.9"(10M) 5+5=10 cells
GM MIL4 39"(1.00M) 60"(1 52M) 32" 9"(10M) 5x2+5x2=20 cells
GM MIL5 24"(0 61M) 24"(0. 61M) 10'(3. 05M) 5cells
GM MIL6 66"(1.68M) 24"(0. 61M) 10'(3. 05M) 5cells
GM MIL7 87"(2. 21M) 84"(2.13M) 91(27.74M) 5+4+4=13 cells
GM MIL8 54"(1.37M) 48"(1.22M) 32: 9"(10M) 5+4=9 cells
GM MIL9 39"(1.00M) 30'"(0.76M) 30(9.14M) 6+6=12 cells
GM MIL10 87"(2. 21M) 60'"(1.52M) 100(30.50M) 5+5+5+5=20 cells
GM MIL11 48"1.22M) 12"(0.30M) 4(1.22M) 2 cells
GM MIL12 84"(2.13M) 42"(1. 06M) 108"(33M) 5+5+5+5+5+5=30 cells
GM MIL19 108"(2.74M) 42"(1. 06M) 10'5(3. 18M) 6 cells


Hesco Barrier Blast Wall Application

∗ Perimeter Security and Defence Walls,
∗ Equipment Revetments,
∗ garden landscaping decorative
∗ Personnel and Material Bunkers, Observation Points, Defensive Firing Positions
∗ Guard Posts, Explosives and Contraband Search Areas, Highway Checkpoints,
∗ Border Crossing Checkpoints, Protecting Existing Structures, Flood control retaining wall
∗ Coastal Erosion, Protection engineering of seaside area.

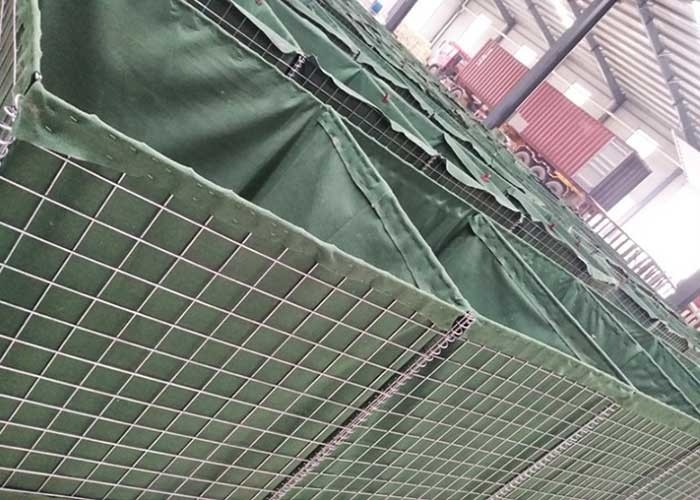

100*100mm Mesh Blast Wall Hesco Mil Blast Wall Basket 0100*100mm Mesh Blast Wall Hesco Mil Blast Wall Basket 1100*100mm Mesh Blast Wall Hesco Mil Blast Wall Basket 2

100*100mm Mesh Blast Wall Hesco Mil Blast Wall Basket 3
