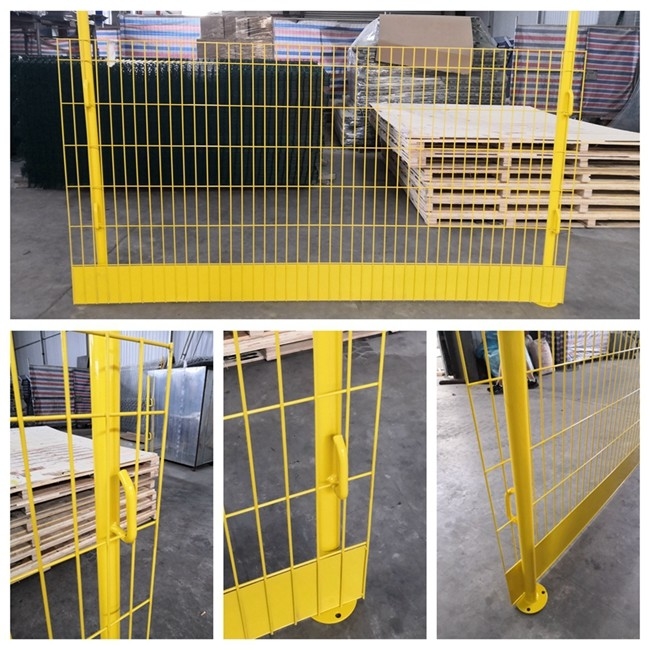

bridge construction Edge Protection Barrier PVC coated
Bridge construction sites demand edge protection that can withstand unique challenges—heavy machinery vibration, exposure to water (rivers, rain), and constant foot traffic near elevated edges (girders, decking, or scaffolding). This edge protection barrier is purpose-built for such conditions, with a PVC-coated design that combines structural strength with resilience, ensuring reliable fall prevention during every phase of bridge building.
At the core of its durability is a thick, seamless PVC coating applied to the barrier’s steel frame. This coating acts as a waterproof shield, blocking moisture, saltwater, and road de-icing chemicals—common in bridge projects over water or highways—from reaching the underlying metal. Unlike paint or galvanization, PVC resists cracking, peeling, or chipping, even when the barrier is struck by tools, equipment, or debris. This ensures the barrier remains rust-free and structurally sound, even after months of exposure to harsh bridge site conditions.
Beneath the PVC coating lies a high-gauge steel frame, engineered to handle the rigorous demands of bridge construction. It withstands lateral loads of up to 150 kg (330 lbs)—critical for resisting impacts from workers leaning against it, equipment bumping into edges, or strong winds common on elevated bridge structures. Welded joints and reinforced rails add extra stability, ensuring the barrier doesn’t flex or collapse when subjected to sudden pressure, a must for protecting workers near unguarded bridge edges.
Bridge construction sites feature irregular edges, varying heights, and tight spaces (between girders, around piers, or on temporary decking). This barrier’s modular design adapts seamlessly:
- Custom Lengths: Panels are available in 4–6 foot sections to cover long bridge edges without gaps, with extensions for spanning wider gaps between structural elements.
- Angle Compatibility: Corner pieces and adjustable hinges allow the barrier to follow the bridge’s contours, whether straight, curved, or sloped (e.g., ramp sections).
- Secure Anchoring: Options include bolt-down bases for permanent decking or weighted clamps for temporary scaffolding, ensuring stability on uneven or moving surfaces (e.g., floating bridges).
Beyond protection, the PVC coating enhances on-site safety:
- High-Visibility Options: The PVC can be colored in safety yellow or orange, making the barrier stand out against steel, concrete, or water, alerting workers to edge hazards in busy or low-light conditions.
- Non-Slip Surface: The textured PVC coating on rails provides a secure grip, reducing the risk of tools slipping off or workers losing balance when leaning against the barrier.
- Low Maintenance: The smooth PVC surface is easy to clean—simply wipe away dirt, mud, or grease—ensuring visibility and functionality aren’t compromised by buildup.
For bridge construction teams, this PVC-coated edge protection barrier is a critical investment. It combines the strength needed to survive harsh site conditions with the corrosion resistance to last through the project’s duration, ensuring every edge remains guarded from the first beam placement to the final deck pour.
Our Edge Protection Barrier Specifications
| Wire Diameter |
Mesh Size |
Height |
Length |
Post |
Thinckness |
Color |
|
5mm
6mm
7mm
|
50*100mm
50*150mm
100*200mm
|
1.05m
1.10m
|
1.3m--2.6m |
48mm |
1.5mm
1.8mm
2.0mm
|
Yellow
Blue
Red
Other RAL color
|
When ordering in large quantities, you have the option of imprinting the customer's logo and colors.Various matching accessories are available to provide solutions for various on-site situations.
Our Edge Protection Barrier Cases:
we offer a wide range of safety solutions to reduce on site accidents. Our pioneering edge protection barriers prevent employees from injury. Whether they are working at ground level or on elevated platforms, we have a selection of building site edge protection safety measures to make sure they are protected while they work.
Our Edge Protection Barrier advantage
1. Our products are versatile and durable - made from high quality materials, hot-dipped galvanized and manufactured to the highest standards of finish!
2. Our products are highly modular and simple to operate and install.One-touch installation! Very convenient and effective!
3. High development capacity for innovative smart solutions customized to customer needs
4. Our fence panels are curved at the top and bottom, and are uniquely designed to provide maximum strength and prevent excessive bending of the net.
5. The uniformity of the installation allows for maximum supervision and control, thus maintaining a high level of safety at all stages of construction.
No items will fall apart to prevent loss.Convenient and effective packaging for long term product storage and easy transportation
