Factory Price Stainless Steel Garden Fence Anti Climb Security Fence Palisade
Specifications of Welded Wire Garden Fence
|
product name
|
Steel Palisade fence/Steel Palisade Fencing/Welded Wire Garden Fence |
| material |
Q235 |
| Height |
1200mm/1500mm/1800mm/2100mm/2400mm/2700mm/3000mm/3600mm |
| Width |
2750mm per bay or as you requirement |
| pale type |
D type, W type, or angle steel type |
| head type |
Pointed, Triple pointed, Rouned, Rouned and notched, Flat , star
|
| Pale thickness |
1.5mm/2.0mm/2.3mm/2.5mm/3.0mm |
| Angle rail |
50x50 RSA or 40x40 RSA, Rail thickness: 4mm/5mm/6mm |
| RSJ post |
100*55*3.5mm |
| Fish plate |
150*30*7mm |
| Bolts&Nuts |
M8×25mm-34pcs and M12×30mm-4pcs |
| Surface treatment |
Hot dipped galvanized (500g/m2, 70um)
Galvanized and powder coated. |
| Lead time |
10 days for 20 feet container |
Welded Wire Garden Fence Brief Introduction

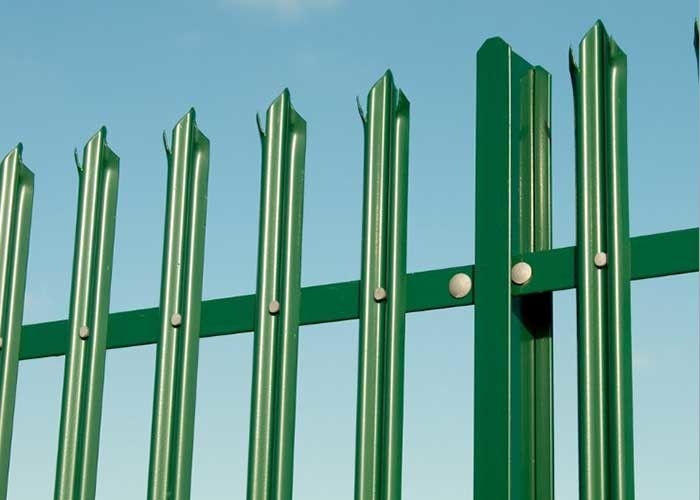

Palisade Fence widely accepted as the industry leader to protect and deter general attack from all types and conditions of intrusion.The pales are made of hot formed and cold rolled steel belts.These belts offer both strength and rigidity combined with a long life span. Palisade normally produce three types of pales, "W" profile, "D" profile and angle iron.
Head types of W & D Section Pales
"W"
| Width (mm) |
Thickness(mm) |
Surface treatment |
Head |
Height(mm) |
| 65,75 |
2.0
2.5
3.0
|
Galvanized and electrostatic
Polyester powder coated ,hot dipped galvanized
|
Single point
Triple point
|
1200 |
| 1500 |
| 1800 |
| 2000 |
| 2100 |
| 2400 |
| 2700 |
| 3000 |
"D"
| Width (mm) |
Thickness(mm) |
Surface treatment |
Head |
Height(mm) |
| 70 |
2.0
2.5
3.0
|
Galvanized and electrostatic
Polyester powder coated ,hot dipped galvanized
|
Single point
Triple point
|
1200 |
| 1500 |
| 1800 |
| 2000 |
| 2100 |
| 2400 |
| 2700 |
| 3000 |
UK BS1722 Standard all 2 rails palisade fence bays of 2.75m includes:
- 1 Palisade Fencing Posts
- 17 Palisade Fencing Pales
- 1 Palisade Fencing Top Rail
- 1 Palisade Fencing Bottom Rail
- 2 Palisade Fencing Fish plates
- 4 Palisade Fencing Anti Tamper M12 Bolts
- 34 Palisade Fencing Anti Tamper M8 Bolts
Why you choose us?
1)We have a standard production and complete quality control system to ensure high quality products to reach your requirements.
2)We own most advanced production equipments
3)We own more than ten senior engineers,they can promise our product technology in the industry in a leading level.
Factory strength
Packing
Pales, angle rail, post: wrapped with PP bags, then put on pallet, wrapped with plastic film;
Accessories: Carton box;
Special request on packing is available.
