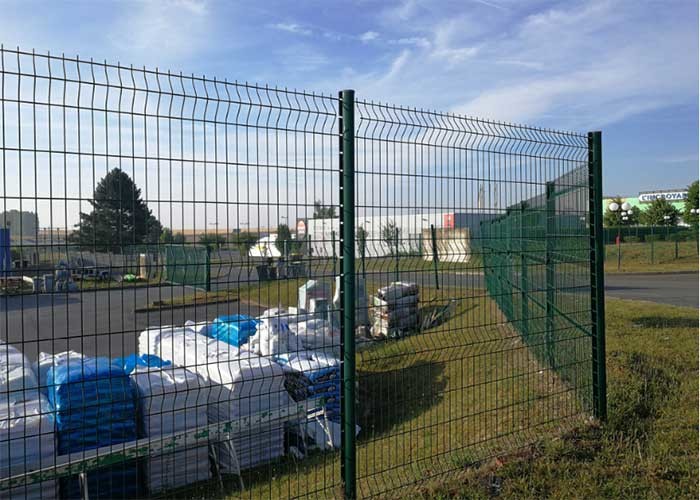

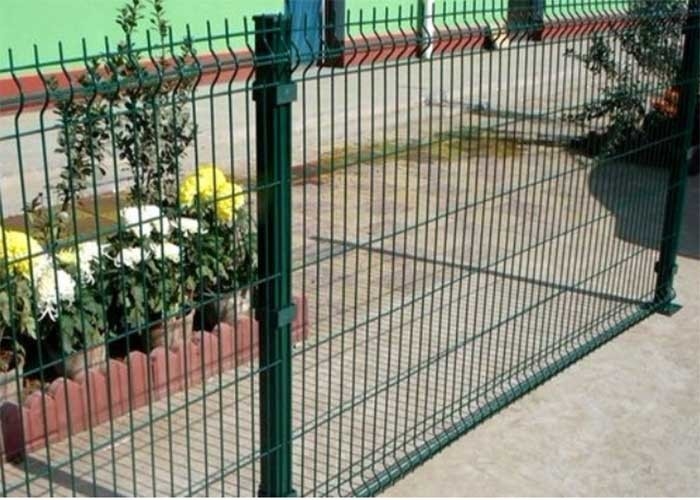

3D Welded 40mm Square Post Security Steel Fence 1.8m High
| Place of Origin | Hebei, China |
|---|---|
| Brand Name | Giant Fence |
| Certification | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| Model Number | GF003 |
| Minimum Order Quantity | 50sets |
| Price | Negotiable |
| Packaging Details | 1.panel and post all bulk in the container 2.panel with pallet and post bulk 3.panel and post all packing with pallet |
| Delivery Time | 18-21days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability | 5000meter per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | 3D Curved Welded V Security Fence | Wire Diameter | 4.5mm |
|---|---|---|---|
| Opening Size | 50*100mm | High | 1.8m |
| Width | 2.5m | Bending No | 3 |
| Material | Low Carbon Steel Wire | Color | Green |
| Post Type | Square Post | Surface Treatment | Galvanized+PVC Coated |
| Highlight | 40mm Square Post Security Steel Fence,3D Welded Security Steel Fence,1.8m High metal safety fencing |
||
Product Description
Square Post With Welded 3D Security Powder Coating Curved Fence
3D Fence with Sqaure post Description
3D Fence with Sqaure post is fixed all the panel with post by plastic or steel clamps. Due to its versatile appearance it can be used for a number of different premises, surrounding large areas without restricting the view., it has simple structure ,easy installation and nice appearance
the panel with curves more stable and stronger. It is one of the easiest ways to ensure that your property is kept secure.
3D Fence with Sqaure post Specification
|
Line wire x Cross wire |
Hole Size | Panel Length | Panel Height | Bending No. | Common Color | Surface treatment |
|
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm 6x5mm 6x6mm |
50X100mm 50X200mm 55X200mm 75X150mm 100X300mm
|
2m 2.2m 2.4m 2.5m 2.8m 3m |
830mm | 2 |
Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010 |
1.Hot-dipped galvanized after black wire welded 2.PVC coated after galvanized wire welded 3.PE coated after galvanized wire welded |
3D Fence Feature
- There have the Triangle shape Bending on the panel. And the bending No.s depend on the panel’s height
- There should be steel and plastic clips using to connect the panel with the post
- The post can welded based on the end and also can bury into the ground
- The surface can do there types :1) hot dip galvanized after welded 2) Galvanzied+powder coating 3) Galvanzied+PE coating
Specifications Of the Sqaure Post
| Post view | Size | Thickness | Panel height | Base post | Normal post | Surface treatment |
| Square post |
40*40mm 50*50mm 60*60mm |
1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2mm 2.5mm |
830mm | 850mm | 1200mm |
1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
| 1030mm | 1050mm | 1400mm | ||||
| 1230mm | 1250mm | 1600mm | ||||
| 1530mm | 1550mm | 2000mm | ||||
| Rectangle post |
30*50mm 40*60mm 60*80mm |
1830mm | / | 2400mm | ||
| 2030mm | / | 2500mm | ||||
| 2230mm | / | 2800mm | ||||
| 2430mm | / | 3000mm |
3D Fence process
1.Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading
2.Post cutting--punching hole on the post -- Powder coating--Loading
Service
1: Product Service
Our products offer 10 YEARS GUARANTEE.
2: Product customization services
We can customize products according to your requirements, including design and drawing.
3: After-sales service
Our after-sales service start immediately after signing the contract.
1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.Do our best to help customer arrange the shipment and customs clearance.
4.Installation, maintenance and repair instructions with full information.
