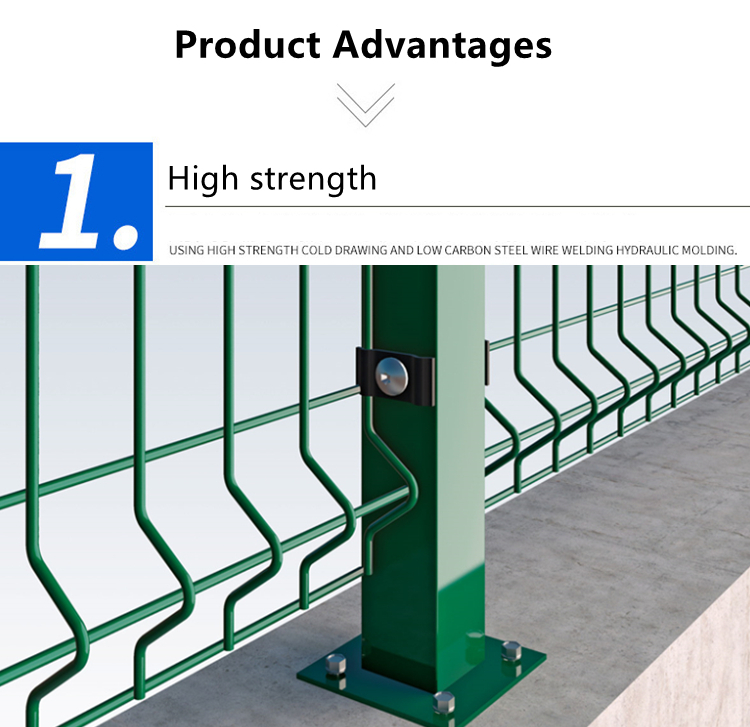

3D curvy welded wire mesh fence
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powers Primer ,and Powers top coating; it can resist the corrosive and ultraviolet very strongly. The thickness of power coating is 100-120 microns usually. The choose wire diameter are 2.0mm- 8.0mm,It obtains high strong powers to resist the construction.
Specifications
| Material | low carbon steel wire Q195,Q235, Stainless steel wire, Hot-dipped galvanized wire. |
| Height | 0.53m - 2.93m. |
| Width | 2m, 2.5m, 3m, customized. |
| Wire diameter | 2mm - 8mm |
| Opening | 50x200mm, 50x100mm, 60x120mm, 75x100m, can be customized. |
| Surface treatment | hot dip galvanized, powder coated, PVC coated |
| Color | green, black, white, yellow, blue, red, gray, etc. |
Fence panels specification:
| Panel height | Panel Length | Wire Diameter | Mesh Size | Folds No. |
| 0.83m |
2.0m 2.5m 3.0m |
3mm - 8mm |
50x200mm 55x200mm 50x150mm 55x100mm
|
2 |
| 1.03m | 2 | |||
| 1.23m | 2 | |||
| 1.43m | 3 | |||
| 1.53m | 3 | |||
| 1.63m | 3 | |||
| 1.73m | 3 | |||
| 1.83m | 3 | |||
| 2.03m | 4 | |||
| 2.23m | 4 | |||
| 2.43m | 4 |
Detailed Images
