UV Protecting 75mmx75mm Gabion Wall Mesh Retaining Wall Gabion Baskets

Place of Origin China
Brand Name Giant Fence
Certification ISO9001:2008
Model Number GF129
Minimum Order Quantity 50 sets
Price Negotiable
Packaging Details 1. packing in the pallet 2. bulk in the container
Delivery Time 20-25days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000meter per week
Product Details
Name Hesco Barrier Blast Wall Material Steel
Fabric Color Brown/green Wire Diameter 4.0mm-5.0mm
Mesh Size 76*76mm/75*150mm/100*100mm Shape Round/square Shape/ Rectangle
Surface Galvanized Wire Welded/Galfan Wire Welded/hot Dip Galvanized After Welded Packing Pallet
Size Mil 1B/1G -Mil 12B/12G Spring Size 4.0,4.5mm
High Light

75mmx75mm Gabion Wall Mesh

,

UV Protecting Gabion Wall Mesh

,

retaining wall gabion baskets

Leave a Message
Product Description

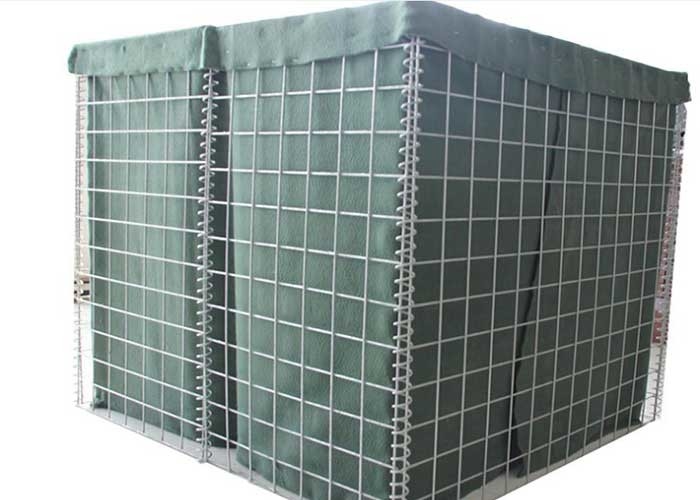

Hot Dipped Galvanized Military Sand Wall Hesco Barrier



Hesco Barriers Blast Wall Introduction



HESCO Barrier also known as Rock basket retaining wall, hesco barrier, flood control barrier, etc. which is made of the steel welded mesh and lined with non-woven geotextile, can be filled with sand, earth, cement, stone, then as a defensive wall or bunker and widely used in the military to protect safety.



Hesco Barriers Blast Wall Specifications



Material: Low carbon steel wire, galvanized wire, zinc-coated aluminum coated wire


Wire diameter : 3.0mm-6.0mm


Spring wire: 4.0mm



Mesh size: 76.2mm*76.2mm.



Panel size: 1*1m,1*2m,1.5*2m,0.5*2m,2.12*1.52m,1.37*1.22m,2.21*2.13m and so on.


Spring diameter:4mm.



Wire diameter 3.85mm,4mm,5mm etc
Mesh Size 75mmx75mm etc
Spring wire diameter 3mm,4mm,5mm etc
Panel Finish Hot dipped galvanized or Galfan coated
Geotextile Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
Packing Wrapped with shrink film or packed in pallet



Hesco Barriers Blast Wall Feature



1. A pre-fabricated gabion of galvanized welded mesh steel fitted with a UV-protecting.

2. Polypropylene geo-textile liner.

3. Filling material is an easy- obtained mix of sand and small stones.

4. It can be used together to any length, and can be stacked for additional height.



Installation method

UV Protecting 75mmx75mm Gabion Wall Mesh Retaining Wall Gabion Baskets 0





Packing terms



1. Panel all packing with the pallet (steel pallet or wooden pallet)

2. bulk in the container



UV Protecting 75mmx75mm Gabion Wall Mesh Retaining Wall Gabion Baskets 1

UV Protecting 75mmx75mm Gabion Wall Mesh Retaining Wall Gabion Baskets 2
