Hebei Giant Metal Technology co.,ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Giant Fence |
| Certification: | ISO9001:2008 |
| Model Number: | GF123 |
| Minimum Order Quantity: | 50sets |
| Price: | Negotiable |
| Packaging Details: | 1. packing in the pallet 2. bulk in the container |
| Delivery Time: | 20-25days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000meter per week |
| Name: | Hesco Barrier Blast Wall | Material: | Steel |
|---|---|---|---|
| Fabric Color: | Brown | Wire Diameter: | 4.0mm/4.5mm/5.0mm |
| Mesh Size: | 76*76mm/50*100mm/100*100mm | Shape: | Round/square Shape/ Rectangle |
| Surface: | Galvanized Wire Welded/Galfan Wire Welded/hot Dip Galvanized After Welded | Packing: | Pallet |
| Size: | Mil 1B/1G -Mil 12B/12G | Spring Size: | 4.0/4.5mm |
| High Light: | Round HESCO Wall,Prefabricated HESCO Wall,4.5mm Wire Hesco Sand Barrier |
||
Mesh gabion is also known as Hesco Wall, gabion barrier, gabion concertainer. It is made of steel welded mesh, spring coil, non-woven geotextile with other fittings to make a simple and strong multi-cellular system.
The finish of barrier is in pre galvanized,galfan coated,hot dipped galvanized to anti corrosion for long lifespan. The barrier is easy to move and install, so it is widely used in military defensive blast wall, flood control, erosion control, security fence barrier and garden decoration.
| wire diameter | Spring wire | Mesh Size |
| 4.0mm/4.5mm/5.0mm | 4.0mm/5.0mm | 76*76mm/50*100mm/100*100mm |
| surface treatment | 1.galvanized wire welded | 2. hot dip galvanized after welded |
Size
| PRODUCT ITERM NO. | HEIGHT | WIDTH | LENGTH | CELLS NO. |
| GM MIL1 | 54"(1.37M) | 42"(1.06M) | 329"(10M) | 5+4=9 cells |
| GM MIL2 | 24" (0.61M) | 24"(0.61M) | 4(1.22M) | 2 cells |
| GM MIL3 | 39"(1.00M) | 39"(1.00M) | 32.9"(10M) | 5+5=10 cells |
| GM MIL4 | 39"(1.00M) | 60"(1 52M) | 32" 9"(10M) | 5x2+5x2=20 cells |
| GM MIL5 | 24"(0 61M) | 24"(0. 61M) | 10'(3. 05M) | 5cells |
| GM MIL6 | 66"(1.68M) | 24"(0. 61M) | 10'(3. 05M) | 5cells |
| GM MIL7 | 87"(2. 21M) | 84"(2.13M) | 91(27.74M) | 5+4+4=13 cells |
| GM MIL8 | 54"(1.37M) | 48"(1.22M) | 32: 9"(10M) | 5+4=9 cells |
| GM MIL9 | 39"(1.00M) | 30'"(0.76M) | 30(9.14M) | 6+6=12 cells |
| GM MIL10 | 87"(2. 21M) | 60'"(1.52M) | 100(30.50M) | 5+5+5+5=20 cells |
| GM MIL11 | 48"1.22M) | 12"(0.30M) | 4(1.22M) | 2 cells |
| GM MIL12 | 84"(2.13M) | 42"(1. 06M) | 108"(33M) | 5+5+5+5+5+5=30 cells |
| GM MIL19 | 108"(2.74M) | 42"(1. 06M) | 10'5(3. 18M) | 6 cells |

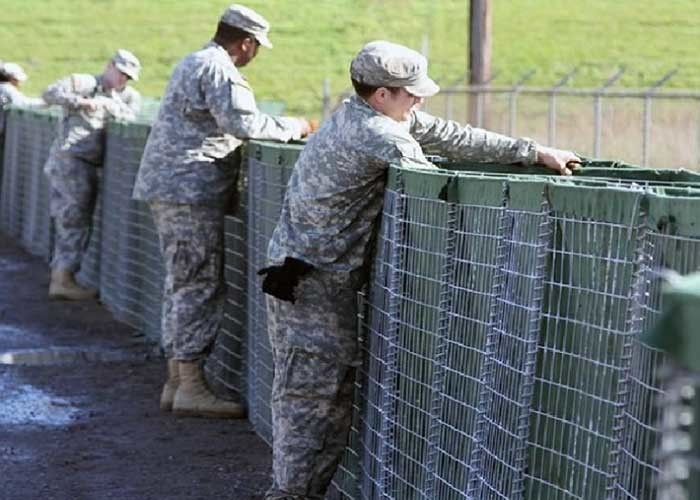

Originally designed for use on beaches and marshes for erosion and flood control, the Hesco Barrier Wall quickly became a popular security device. In general, it takes far less labor to build a Hesco Barrier Wall than an equivalent structure made with sandbags.
1, Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for additional height.
2, The spiral hinged corners allows flat packing for ease of transportation
3, The welded mesh frame is of highly durable construction
4, The Galfan coated welded mesh frame is ideal for containing large amounts of the geavy fill material that gives the system its strength.
5, The non-woven geotextile liner allowing a wide range of fill material
Purchase the raw material wire--Zn/Ai coating test--straingting--cutting--welding panel--spring installed--attached woven fabric--packing--Loading
Service
Product Service
Our products offer 10 YEARS GUARANTEE.
Product customization services
We can customize products according to your requirements, including design and drawing.
After-sales service
Our after-sales service start immediately after signing the contract.
1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.Do our best to help customer arrange the shipment and customs clearance.
4.Installation, maintenance and repair instructions with full information.
