Hebei Giant Metal Technology co.,ltd
| Place of Origin: | Hebei. China |
|---|---|
| Brand Name: | Giant Fence |
| Certification: | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| Model Number: | GF071 GF072 GF073 GF074 GF075 GF076 |
| Minimum Order Quantity: | 50sets |
| Price: | Negotiable |
| Packaging Details: | 1.panel and post all bulk in the container 2.panel with pallet and post bulk 3.panel and post all packing with pallet |
| Delivery Time: | 18-21days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000meter per week |
| Model Number: | Tubular Steel Fence | Metal Type: | Iron |
|---|---|---|---|
| Frame Finishing: | Powder Coated | Material: | Low Carbon Steel Wire |
| Height: | 1030-3030mm | Post Type: | Square Post |
| Surface Treatment: | Galvanized+Powder Coated | Color: | White,Black,green |
| High Light: | Spear Top Tubular Steel Fence,Height 3030mm Tubular Steel Fence,black tubular fencing |
||

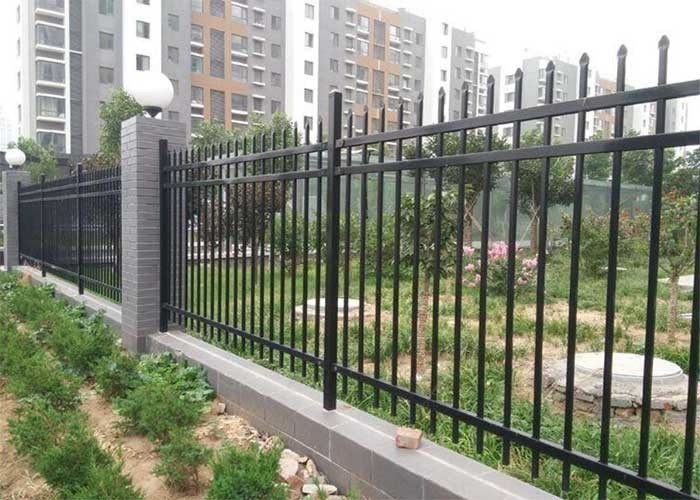

Spear Top Tubular Steel Fence Panel Powder Coated Top Spear Metal Tubular Steel Fence
Tubular Steel Fence Description
Galvanized Steel Picket Fence can be zinc galvanized picket fence or powder coated steel fence. The panels are manufactured with strong steel pickets and rails available in a wide range of sizes and styles. Steel Tube / Bar Panels are attached with high-strength steel or aluminum brackets to galvanised square tubular steel or aluminum posts. The Spear top design of this tubular fence creates an aesthetically pleasing fence which at the same time deters intruders. This security level ornamental fence is suitable for gardens, residential, industrial and commercial properties, schools, pools and boundary fencing.
Tubular Steel Fence Specification
| Product code | panel size(mm) | rail(mm) | picket(mm) | ||
| SF121 | 2400 W x 2400 H | 40 x 40 x 2.5 | 25 x 25 x 2.0 | ||
| SF122 | 40 x 40 x 2.0 | 25 x 25 x 1.6 | |||
| SF123 | 40 x 40 x 1.6 | 25 x 25 x 1.2 | |||
| SF124 | 2400 W x 2100 H | 40 x 40 x 2.0 | 25 x 25 x 1.6 | ||
| SF125 | 40 x 40 x 1.6 | 25 x 25 x 1.2 | |||
| SF126 | 2400 W x 1800 H | 40 x 40 x 1.6 | 25 x 25 x 1.2 | ||
| SF127 | 2400 W x 1500 H | 40 x 40 x 1.6 | 25 x 25 x 1.2 | ||
| Capped Post(mm) | 65 x 65 x 1.59 | ||||
| 65 x 65 x 2.0 | |||||
| 65 x 65 x 2.5 | |||||
| 65 x 65 x 3.0 | |||||
| Bracket( 40x40) | Alloyed | ||||
| Galvanized Steel | |||||
Tubular Steel Fence Application
1.Purchase the raw material tube--Zn/Ai coating test--cutting--welding panel--punching picket--Powder coating --loading
2.Post cutting--punching hole on the post -- Powder coating--Loading
Packing terms
