Hebei Giant Metal Technology co.,ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Giant Fence |
| Certification: | ISO9001:2008 |
| Model Number: | GF129 |
| Minimum Order Quantity: | 50 sets |
| Price: | Negotiable |
| Packaging Details: | 1. packing in the pallet 2. bulk in the container |
| Delivery Time: | 20-25days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000meter per week |
| Name: | Hesco Barrier Blast Wall | Material: | Steel |
|---|---|---|---|
| Fabric Color: | Brown/green | Wire Diameter: | 4.0mm,4.5mm,5.0mm |
| Mesh Size: | 76*150mm/75*150mm/100*100mm | Shape: | Round/square Shape/ Rectangle |
| Surface: | Galvanized Wire Welded/Galfan Wire Welded/hot Dip Galvanized After Welded | Packing: | Pallet |
| Size: | Mil 1B/1G -Mil 12B/12G | Spring Size: | 4.0mm |
| High Light: | Stone Cage Retaining Wall Baskets,Galvanized Stone Cage Retaining Wall,Retaining Wall Baskets 76*150mm |
||
HESCO Barriers Blast Wall is extensively used in the protection of personnel and key assets in military, peacekeeping, humanitarian and civilian operations.

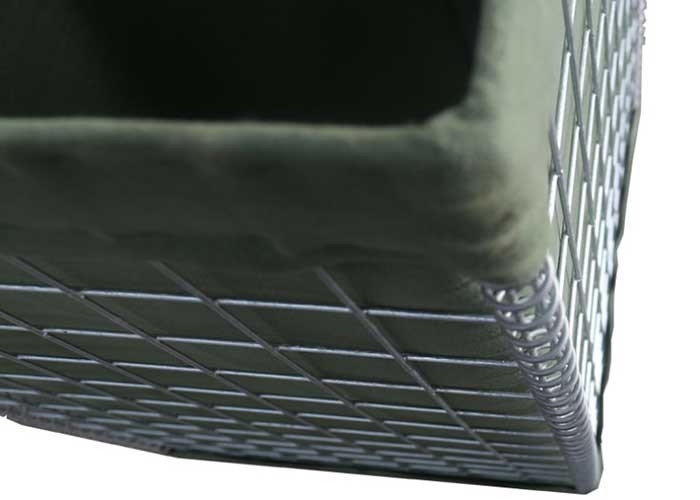

Flood barrier is made of collapsible wire mesh, geotextile, spring wire and other fittings. It can be filled in sand, earth, cement and stone etc, which can be obtained locally material. This new type of gabions can be used for military fortifications, flood barrier, and semi-permanent dike or barrier against small-arms.
Besides, it can be used in separate cell or some cells joint together.
| Hesco size | 0.61*0.61m,1.37*1.06m,1.37*1.22m,2.12*1.52m,2.21*2.13m |
| Wire diameter | 3.8mm,4.0mm,4.5mm,5.0mm,etc. |
| Mesh size | 50*50mm,65*65mm,76.2*76.2mm,80*80mm,100*100mm |
| Geotextile | 200-400gr/m2 Heavy duty non-woven polypropylene, color can be beige-sand, olive green,grey,white,etc |
| Spring diameter | 3mm,4mm,5mm,etc. |
| Finish | pre galvanized, galfan coated,hot dip galvanized |
| Packing | Wrapped with shrink film then on pallet |
| Accessories | Y post,Razor wire, Barbed wire |
|
Color
|
Beige sand,Olive green,Grey
|
|||
|
Mass(g/sqm)
|
250,300,350
|
|||
|
Tensile strength
|
16kN
|
|||
|
Tear Strength
|
0.42kN
|
|||
|
CBR Puncture
|
3.1kN
|
|||
|
UV strength retention
ASTM D4355
|
50% at 500hours
(5 years use life in common environment) |
|||
|
70% at 500hours
(10 years use life in common environment) |
||||
∗ Perimeter Security and Defence Walls
∗ Equipment Revetments
∗ Garden landscaping decorative
∗ Personnel and Material Bunkers, Observation Points, Defensive Firing Positions
∗ Guard Posts, Explosives and Contraband Search Areas, Highway Checkpoints
∗ Border Crossing Checkpoints, Protecting Existing Structures, Flood control retaining wall
∗ Coastal Erosion, Protection engineering of seaside area.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. bulk in the container
