Galvanized Steel High 3.6M W Section Palisade Fencing Powder Coated
  • Galvanized Steel High 3.6M W Section Palisade Fencing Powder Coated
  • Galvanized Steel High 3.6M W Section Palisade Fencing Powder Coated
  • Galvanized Steel High 3.6M W Section Palisade Fencing Powder Coated

Galvanized Steel High 3.6M W Section Palisade Fencing Powder Coated

Place of Origin China
Brand Name Giant Fence
Certification ISO9001:2001
Model Number GF090
Product Details
Name:
Palisade Fence
Width:
2750mm Per Bay Or As You Requirement
Height:
1200mm To 3600mm
Pale Type:
D Type, W Type, Or Angle Steel Type
Head Type:
Pointed, Triple Pointed, Rouned, Rouned And Notched, Flat , Star
Pale Thickness:
1.5mm-/3.0mm
Angle Rail:
50x50*5mm,40*40*4mm,
RSJ Post:
100*55*3.5mm
Fish Plate:
150*30*7mm
Surface Treatment:
Galvanized And Powder Coated.
Highlight:

3600mm Galvanized Steel Palisade Fencing

,

Palisade Metal Palisade Fence

,

3.6m w section palisade fencing

Payment & Shipping Terms
Minimum Order Quantity
50sets
Price
Negotiable
Packaging Details
1. panels packing with pallet post bulk in the container 2. panel with post all bulk in the container 3. panle with post all packing with pallet
Delivery Time
15-18days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000meters per month
Product Description

Professional Design Durable New Coming Garden Palisade Fence





Product Description



Palisade fencing use as decoration or protection for various facilities in industry, agriculture, infrastructure, transport, etc..

There are "D" and “ W” based on the diferent tops.

'D' Section Palisade
'D' Section refers to the shape of the vertical pale profile, which is best suited to sites requiring a boundary with forbidding appearance and general damage resistance.

'W' Section Palisade
The 'W' Section profile gives extra protection over 'D' Section to the pale fixing on the attack face of the fence



Palisade Fencing Specifications



fence panel height 1m-5m
fence panel width 2m-3m
pale height 1m-5m
pale width W pale:62mm,72mm;D pale:65mm;angle steel:40x40mmx3mm
pale thicknesd 1.5-4.0mm
top point three triple point,single point, round point ETC
angle rail 50mmx50mm,63mmx63mm,
angle rail thickness 4mm-6mm
I beam post 100mmx55mmxheight:1.5m-6m,150mmx75mmxheight:3m-6m
C post 125mmx65mmxheight:2.5m-3.5m
square post 70x70mmx3mm,80x80mmx3mm



About Giant’ palisade fencing



Giant’ palisade is a hugely popular, versatile and reliable fencing system. It addresses a wide range of perimeter security needs, from general purpose demarcation to the highest security, rigorously tested fencing. Our palisade is available in various specifications and is particularly well-suited to the road and rail, utilities, education, retail, industrial, airports and ports and data centre sectors.



Its imposing appearance makes for an effective visual deterrent, while spiked tops, minimal foot holes and cutting-resistant solid steel vertical pales ensure excellent protection against unauthorised access, vandalism and attack. Additional security options such as triple spiked tops, razor wire coils, barbed wire and rotating spikes can further reinforce your boundary.



Palisade is the ideal solution for any business, school or public space in need of a strong, durable perimeter. Powder coating in an array of colours means that this product can be matched to corporate and brand identities or customised to assimilate with surrounding environments.



Giant’ hot dip galvanize our palisade products to protect the steel from the elements, rust and other deterioration, guaranteeing an exceptionally long lifespan.



Unlike several alternatives, Giant’ palisade fencing systems cope with sloping ground up to 25 degree angles without cutting down bays or making modifications. It is also flexible to most budgets and manufactured to BS 1722, 12 and beyond.


UK BS1722 Standard all 2 rails palisade fence bays of 2.75m includes:

  • 1 Palisade Fencing Posts
  • 17 Palisade Fencing Pales
  • 1 Palisade Fencing Top Rail
  • 1 Palisade Fencing Bottom Rail
  • 2 Palisade Fencing Fish plates
  • 4 Palisade Fencing Anti Tamper M12 Bolts
  • 34 Palisade Fencing Anti Tamper M8 Bolts

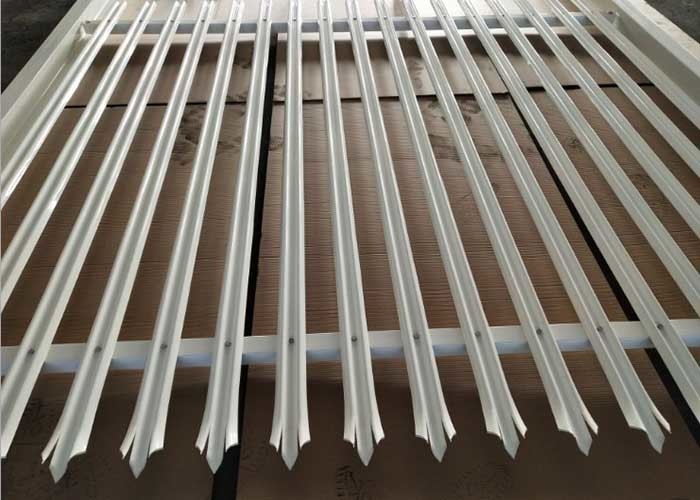

Galvanized Steel High 3.6M W Section Palisade Fencing Powder Coated 0

Galvanized Steel High 3.6M W Section Palisade Fencing Powder Coated 1

Galvanized Steel High 3.6M W Section Palisade Fencing Powder Coated 2
