Anti Corrosion Hexagonal Gabion Mesh Gabion Baskets 2mx1mx1m
  • Anti Corrosion Hexagonal Gabion Mesh Gabion Baskets 2mx1mx1m
  • Anti Corrosion Hexagonal Gabion Mesh Gabion Baskets 2mx1mx1m
  • Anti Corrosion Hexagonal Gabion Mesh Gabion Baskets 2mx1mx1m

Anti Corrosion Hexagonal Gabion Mesh Gabion Baskets 2mx1mx1m

Place of Origin Hebei，China
Brand Name Giant Fence
Certification ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Model Number GF131
Product Details
Model Number:
Woven Gabion Basket
Metal Type:
Iron
Pressure Treated Wood Type:
Heat Treated
Feature:
Anti Corrosion
Usage:
Garden Fence, Highway Fence, Sport Fence, Farm Fence
Surface Treatment:
Galvanized
Width:
1Meters
Height:
2Meters
Application:
Gabion Wall River Bank Protection
Hole Shape:
Hexagonal
Highlight:

hexagonal gabion mesh

,

Anti Corrosion Hexagonal Gabion Mesh

,

Gabion Baskets 2mx1mx1m

Payment & Shipping Terms
Minimum Order Quantity
50sets
Price
Negotiable
Packaging Details
1.Basket making as the bundle and taking them in the container
Delivery Time
8-15days
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
5000meter per week
Product Description

Galfan Gabion Basket 2mx1mx1m Dam Protecting Gabion




Gabion Details


Gabion are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC coated wires, the mesh shape is hexagonal style. The gabion boxes are used widely in slope protection, foundation pit suporting, mountain rock holding, river and dams scour protection.




Gabion Specifications:


Wire diameter 2.0-4.0mm
Mesh Size 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm
Surface treatment hot-dipped galvanzied/PVC coated
Color silver/green/black green
Application soil, bridge construction, water bank
Features 1. Soft structure
Exactly adapt to any changing of slope but not ruined by it, which more stable than rigid structure.

2. Strong capacity of Anti-scour
Even reach to 6m/s.

3. The structure has permeability essentially
Which let ground water leak while Precipitate suspended matter,mud to stay in the stone gaps, thus plants grow, restoring previous ecology.



Length Width Height Diaphragm CUM The tolerance
M M M Unit M3
2 1 0.3 1 0.6
3 1 0.3 2 0.9
4 1 0.3 3 1.2 length+-3%
2 1 0.5 1 1 width+-5%
3 1 0.5 2 1.5 height+-5%
4 1 0.5 3 2
1 1 0.5 0 1 Hole size
1.5 1 1 0 1.5 60x80mm
2 1 1 1 2 80x100mm
3 1 1 2 3 100x120mm
4 1 1 3 4


Technical standard of Double Twist Hexagonal Gabion Basket as following list:


1. All the gabion mesh/wire/box sizes specifications according to ASTMA975.
2. Zinc-Coated SteelWire as perASTM_A641, Class 3 Coating, soft temper.
3. PVC (Polyvinyl Chloride) Coated, Ho gabion rock t-dip Galvanized First.
4.Zn - 5Al - MM Coated SteelWire as perASTMA 856/A 856M, Class 3 coating, soft temper
5.PVC Coating requirements according to ASTM Standard and EN 10245-2 Standard.

Applications of Double Twist Hexagonal Gabion Basket


Gabions and mattresses are widely used for hydraulic and geo- technical control such as retaining walls, riverbank protections, weirs, channel linings etc.
* Control and guide of water or flood,
* Flood bank or guiding bank,
* Preventing of rock breaking
* Water and soil protection
* Bridge protection
* Strengthening structure of soil
* Protection engineering of seaside area



Packing:

1. carton box or on pallet or bundle on the pallet
2. according to customers' request.

Service

1: Product Service
Our products offer 10 YEARS GUARANTEE.

2: Product customization services
We can customize products according to your requirements, including design and drawing.

3: After-sales service
Our after-sales service start immediately after signing the contract.
1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.Do our best to help customer arrange the shipment and customs clearance.
4.Installation, maintenance and repair instructions with full information.

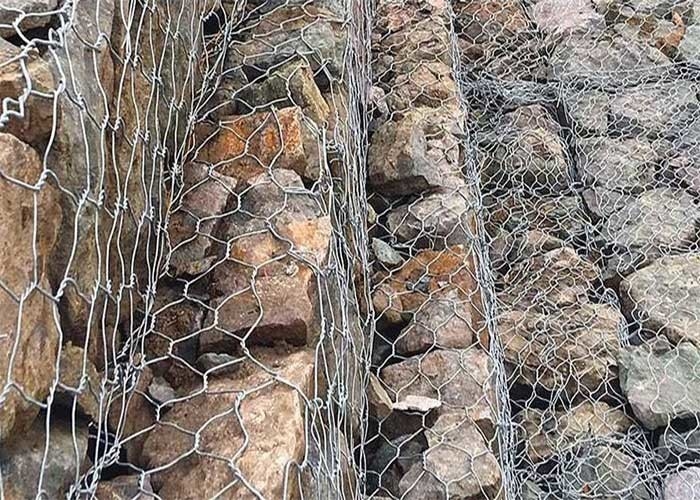

Gabion Fence Picture


Anti Corrosion Hexagonal Gabion Mesh Gabion Baskets 2mx1mx1m 0

Anti Corrosion Hexagonal Gabion Mesh Gabion Baskets 2mx1mx1m 1Anti Corrosion Hexagonal Gabion Mesh Gabion Baskets 2mx1mx1m 2
