Hebei Giant Metal Technology co.,ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Giant Fence |
| Certification: | ISO9001:2001 |
| Model Number: | GF090 |
| Minimum Order Quantity: | 50sets |
| Price: | Negotiable |
| Packaging Details: | 1. panels packing with pallet post bulk in the container 2. panel with post all bulk in the container 3. panle with post all packing with pallet |
| Delivery Time: | 15-18days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000meters per month |
| Name: | Welded Wire Garden Fence | Material: | Metal |
|---|---|---|---|
| Wire Diameter: | 4.0/4.5/5.0mm | Opening Size: | 50*100-100*300mm |
| Length: | 2.0-2.8m | Height: | 830-2030mm |
| Color: | Green/grey/brown/black/white | Surface 1: | 1. Hot Dip Galvanized After Welded |
| Surface 2: | 2. Powder Coating After Galvanized Wire | Surface 3: | 3.PE Coated After Galvanized Wire |
| High Light: | 4.0mm Dia Brc Mesh Fencing,Hot Dip Galvanized Welded Wire Fence,Galvanized Brc Mesh Fencing |
||
Outdoor Garden Powder Coated Specification Galvanized BRC Welded Mesh Fence

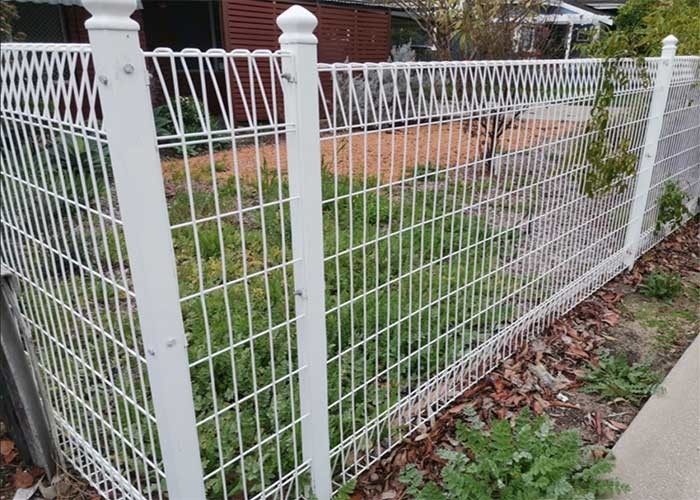

Roll Top Fence Introduction
BRC Fence is a mesh fence system that has a roll top to enhance the safety and rigidity of ence system. The roll top mesh fence system is most friendly system for install workers due to there are no any burrs or sharp, raw edges in the whole sheet of mesh fence.
Roll Top Fence Specifications
BRC Fence has attractive appearance, various colors, it not only has the fencing function but also has the beautify and safety effect.
| Height | Post Dimensions |
Rail Dimensions |
Support Legs |
Corrugated Steel Palisades |
| 1.2m | 102x44 or 100x55 | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 1.5m | 102x44 or 100x55 | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 1.8m | 102x44 or 100x55 | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.0m | 102x44 or 100x55 | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.1m | 102x44 or 100x55 | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.4m | 102x44 or 100x55 | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.7m | 102x44 or 100x55 | 50x50x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 3.0m | 127x76 | 50x50x6mm | 2 | W - 2.5mm or D - 3.5mm |
| 3.6m | 127x76 | 50x50x6mm | 2 | W - 2.5mm or D - 3.5mm |
Roll Top Fence Details of the post
| Post view | Size | Thickness | Panel height | Base post | Normal post | Surface treatment |
| Square post |
40x40mm 50x50mm 60x60mm |
1.5mm 1.8mm 2mm 2.5mm |
830mm | 850mm | 1200mm |
1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
| 1030mm | 1050mm | 1400mm | ||||
| 1230mm | 1250mm | 1600mm | ||||
|
Round post
|
Φ48mm Φ60mm Φ75mm |
1530mm | 1550mm | 2000mm | ||
| 1830mm | / | 2400mm | ||||
| 2030mm | / | 2500mm |
Roll Top Fence Material
1 iron wire (no zinc)
2 electro galvanized wire (zinc thickness: 10-20g/m2)
3 hot dipped galvanized wire (zinc thickness: 30-40g/m2)
4 heavy hot dipped galvanized wire (zinc thickness: 200g/m2)
5 Powder spray coated (thickness 0.1mm)
6 PVC/PE dipped coating (thickness 0.8-1.2mm)
Roll Top Fence Advantages
1 > With the characteristics of high strength, good rigidity, beautiful appearance, a broad field of vision, easy installation, bright feeling, light and practical.
2 > It is very compact connecting the mesh with the posts is very compact, whole feels good.
3 > Fluctuate of circle so that the net surface strength increased significantly.
Roll Top Fence Drawing of the fence
Roll Top Fence Packing
