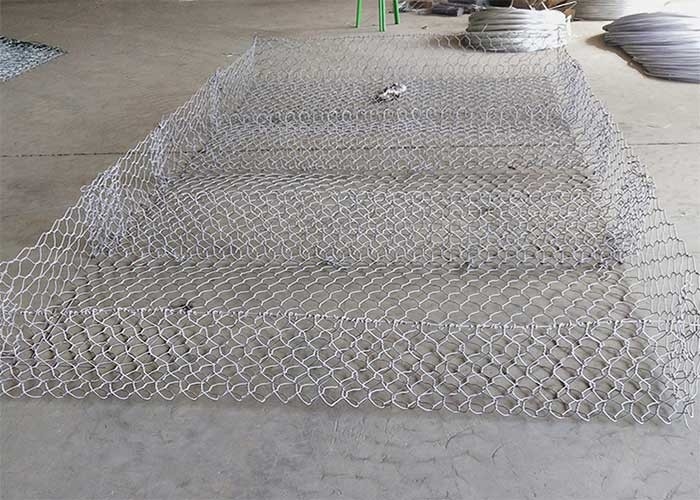

Pvc Coated Hexagonal Gabion Box Wire Netting Gabion Box
Gabion Fence System Details
Gabion boxes are made of triple twist hexagonal woven mesh fabric. Gabions stand out as the simple, efficient and economical solution, as the cages are simply filled with natural stone and also proven as environmentally friendly.
Galvanized gabion is divided into electro-galvanized gabion, hot dipped galvanized gabion, heavily galvanized gabion.
Electro-galvanized gabion, zinc coated weight is 10-20g/square meter, service life is 5 years.
Hot galvanized gabion ,zinc coated weight is 30-50g/square meter, service life is 5-8 years.
Heavily galvanized gabion, zinc coated weigh is 200-280g/square meter, service life is 20 years.
Gabion Fence System Specifications
| Hole (mm) |
Mesh wire(mm) |
Side wire(mm) |
Binding wire(mm) |
Max width |
| 60X80 |
2.0~2.8 |
3.0~4.0 |
2.0~2.2 |
4M |
| 80X100 |
2.0~3.0 |
3.0~4.0 |
2.0~2.2 |
4M |
| 80X120 |
2.0~3.0 |
3.0~4.0 |
2.0~2.2 |
4M |
| 100X120 |
2.0~3.0 |
3.0~4.0 |
2.0~2.2 |
4M |
| 100X150 |
2.0~3.0 |
3.0~4.0 |
2.0~2.2 |
4M |
| 120X150 |
2.0~3.0 |
3.0~4.0 |
2.0~2.2 |
4M |
| Length (m) |
Width (m) |
Height (m) |
Spacer number |
Volume (m2) |
Tolerance range |
| 2.0 |
1.0 |
0.15---0.3 |
1 |
0.3~0.6 |
Length :±/-3%
Width :±/-5%
Height :±/-5% |
| 3.0 |
1.0 |
0.15---0.3 |
2 |
0.45~0.9 |
| 4.0 |
1.0 |
0.15---0.3 |
3 |
0.6~1.2 |
| 2.0 |
1.0 |
0.5 |
1 |
1.0 |
| 3.0 |
1.0 |
0.5 |
2 |
1.5 |
| 4.0 |
1.0 |
0.5 |
3 |
2.0 |
| 1.0 |
1.0 |
1.0 |
0 |
1.0 |
| 1.5 |
1.0 |
1.0 |
0 |
1.5 |
| 2.0 |
1.0 |
1.0 |
1 |
2.0 |
| 3.0 |
1.0 |
1.0 |
2 |
3.0 |
| 4.0 |
1.0 |
1.0 |
3 |
4.0 |
Gabion Fence System Applications
Gabion Box with its good corrosion resistance and oxidation resistance, serves well as strengthening,protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
Gabion Fence System Packing:
1. carton box or on pallet or bundle on the pallet
2. according to customers' request.
