Galvanized Wire Woven 0.8m High 150mm Mesh Sheep Livestock Panels
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Sheep Farm Game Fence | Material | Steel |
|---|---|---|---|
| Shape | Hinged Knot | Surface | Hot Dip Galvanized |
| Packing | Bulk | Related Product | Farm Gate |
| Height | 0.8m | Length | 50m |
| Opening Mesh | 150mm | Package | Plastic Film |
| High Light | galvanized wire woven sheep yard panels,0.8m high sheep livestock panels,150mm mesh sheep livestock panels |
||
Product Description

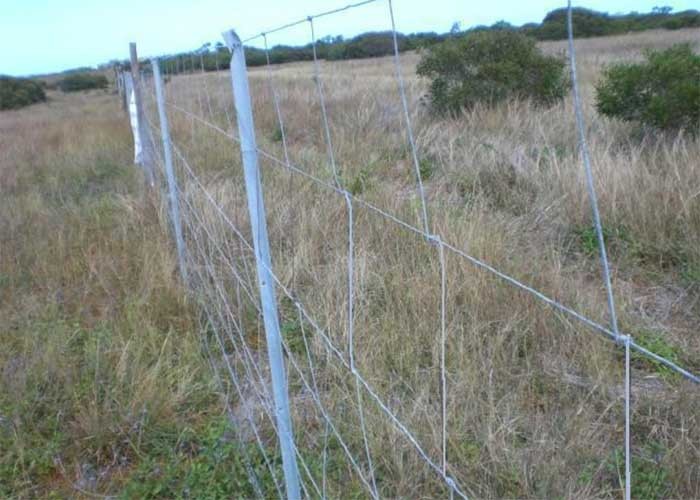

Galvanized Livestock Prevent Hinge Joint Page Wire Farm Field Fence
Farm fence Detail
Farm fence is manufactured in a wide selection of heights and styles featuring a graduated spacing that starts with small openings at the bottom which helps prevent entry from small animals. The hinge-lock knot allows the fencing to give under pressure and spring back into shape.
Specifications of the panels
| No. | Type | Specification | Weight(kg) | Top and Bottom Wire Dia.(mm) | Body Wire(mm) |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 |
| 2 | 8/150/813/50 | 89(75)+89+102++114+127+140+152 | 20.8 | 2.5 | 2.0 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 |
| 6 | 9/150/991/50 | 89(75)+89+102++114+127+140+152+178 | 23.9 | 2.5 | 2.0 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.5 | 2.0 |
| 8 | 10/150/1194/50 | 89(75)+89+102++114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 |
| Note:The first data in type is the No.of line wire; The second data is horizontal hole size(mm); The third data is the height of the fence(mm); The fourth data is the total length of the fence(mm). | |||||
Technical parameters:
Wire diameter and tensile strength:
horizontal wires: diameter 2.5 mm, tensile strength 1100-1300N/mm²
vertical wires: diameter 2.5 mm, tensile strength 600-850N/mm²
knot wires: diameter 2.2 mm, tensile strength 400-525N/mm²
Product Features:
1). With innovative and firm structure, flat surface, uniform opening.
2). Good flexibility, good resistance against pressure, hit, corrosion and weather.
3). Neither loose nor break even when partial cutting or hit occur.
4). Tight rolls and large loading, suitable for exporting.
5). Less weight, easy transport, fast installation, easy maintenance.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. Clips packing in the carton box
