River Control Gabion Wire Mesh 60*80mm Zinc Coated Gabion Wall Fence

Place of Origin Hebei,China
Brand Name Giant Fence
Certification ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Model Number GF131
Minimum Order Quantity 50sets
Price Negotiable
Packaging Details 1.Basket making as the bundle and taking them in the container
Delivery Time 8-15days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 5000meter per week
Product Details
Model Number Woven Gabion Basket Frame Material Metal
Metal Type PVC Coated Wire, Galvanized Wire Pressure Treated Wood Type Heat Treated
Frame Finishing Zinc Coated Process Weaving Mesh
Usage Roadway Protection, River Control Surface Treatment Galvanized
Gabion Size 2x1x1,3x1x1,4x1x1,6x2x0.3 Mesh Size 60x80 80x100 80x120 100x120
High Light

River Control Gabion Wire Mesh

,

Gabion Wire Mesh 60*80mm

,

Zinc Coated Gabion Wall Fence

Leave a Message
Product Description

HD Galvanized 60*80mm River Embankment Mattress Gabion Mesh Boxes





Gabion Mesh Box Details



Stone gabion mesh box by high corrosion resistance, high strength, ductile low carbon steel wire or including PVC steel wire using mechanical weaving, the use of the net made of the box structure is the stone cage cage.



According to the ASPM and EN standards, the low carbon steel wire diameters used vary according to engineering design requirements.



Generally between 2.0 and 4.0 mm, the tensile strength of the stone cage net steel wire is not less than 38 kilograms per square meter, metal coating weight is generally higher than 245 grams per square meter.



Stone cage mesh edge mesh diameter is generally larger than the wire diameter.



The double stranded part of the length shall not be less than 50 mm, in order to ensure that part of the stranded wire metal coating and PVC coating is not damaged.



  • 1)Gabion Mesh Box Material:
  1. Galvanized wire, electric galvanized wire, plastic coated wire
  • 2) Gabion Mesh Box applications:
  1. Control and guide of water or flood
  2. Flood bank or guiding bank
  3. Preventing of rock breaking
  4. Water and soil protection
  5. Bridge protection
  6. Strengthening structure of soil
  7. Protection engineering of seaside area
  • 3) Gabion Mesh Box features:
  1. corrosion- resistant, rust-resistant.
  2. oxidation –resistant, good tensile strength.
  3. uniform mesh size, flat and even mesh surface, weave tightly.
  4. galvanized /pvc coated for longer life, low costs 5) easy to handle and cut.

Gabion Mesh Box Specifications:



Materials Mesh wire Selvage wire Tie wire Mesh size Length Diaphragm Width Height

Galvanized wire

Galfan wire

PE/PVC coated wire

1.8mm

2.0mm

2.2mm

2.4mm

2.7mm

3.0mm

2.4mm

2.7mm

3.0mm

3.4mm

4.0mm

2.0mm

2.2mm

2.4mm

60x80mm

80x100mm

100x120mm

1.0m

2.0m

3.0m

4.0m

5.0m

6.0m

No

1

2

3

4

5

0.5m

1.0m

1.5m

2.0m

3.0m

0.3m

0.5m

1.0m

1.5m

Extra tie wire: 2% weight of gabion box



Regular size for gabion box

Wire diameter: 2.7X3.4X2.2mm, mesh size: 80X100mm, box size: 2X1X1m
Regular size for gabion mattress
Wire diameter: 2.2X2.7X2.2mm, mesh size: 60X80mm, mattress size: 3X2X0.3m
Regular size for gabion mesh roll
Wire diameter: 2.7X3.4mm, mesh size: 60X80mm/80X100mm, roll size: 2X50m

MATTRESSES are also rectangular boxes which are larger in area and thinner in depth than gabions. They are made with a smaller mesh size and a thinner wire to provide a higher degree of flexibility. Like the gabions, the mesh is framely a thicker selvedge wire but due to the larger size of the mattress the lid is made of a separate panet of mesh to the base. Additional end panels and internal diaphragms at 1.0m centres are then wired to the base of thr mattress.

Material: Galvanized iron wire and PVC coated wire
Galfan(95%zinc-5%Alu Alloy)low carbon steel wire, which has good ability of resistance corrosion.
Mesh wire: 2.0mm-4.0mm
Mesh size: 6X8cm, 8X10cm, 10X12cm, 12X15cm, 16X18cm
Size: 1X1X1m, 2X1X1m, 3X1X1m, 4X1X1m, 2X1X0.5m, 4X1X0.5m



Gabion Mesh Box Applications

  1. Gabion Mesh Box can be used as protective fences around your properties or as a support on slopes or paths. Single stone baskets can be used in your garden to design different fences around fireplaces, as base constructions for garden benches or bars, or to surround and decorate ponds or plants. You can even use them as a decorative support for climbing plants. Metal mesh baskets are made of firm wire.
  2. Control and guide of water or flood
  3. Preventing of rock breaking
  4. Rock fall protection
  5. Water and soil protection
  6. Bridge protection

Gabion Mesh Box Features



1. Easy to Install

Align wire mesh with the spiral pole to form a single structure, the pole will fall down automatically by itself; no tools necessary.


2. High Quality Material

Made of galvanized steel wire, resistant to rust and corrosion; with grids evenly spaced at 5 x 10 cm and hooks to fasten and keep the original shape, gabion is solid and durable.


3. Multi Purpose Use

Can be used as partitions for a retaining wall, fencing, garden decoration; road building or stabilizing inclines against erosion.


4. Cost Effective

Replace traditional walls to save cost and time, easy to operate and has an appealing look.



5. Custom Fillers

Materials for filler based on your need, cobblestone, rock, brick fragments, concrete and wood blocks; lights, flowers or plants can be added for decoration and as the highlight of your yard.



6. Soft structure
Exactly adapt to any changing of slope but not ruined by it, which more stable than rigid structure.



7. Strong capacity of Anti-scour
Even reach to 6m/s.



8. The structure has permeability essentially
Which let ground water leak while Precipitate suspended matter,mud to stay in the stone gaps, thus plants grow, restoring previous ecology.



Packing:



1. carton box or on pallet or bundle on the pallet
2. according to customers' request.



Service



1: Product Service

Our products offer 10 YEARS GUARANTEE.



2: Product customization services

We can customize products according to your requirements, including design and drawing.



3: After-sales service

Our after-sales service start immediately after signing the contract.

1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.

2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.

3.Do our best to help customer arrange the shipment and customs clearance.

4.Installation, maintenance and repair instructions with full information.

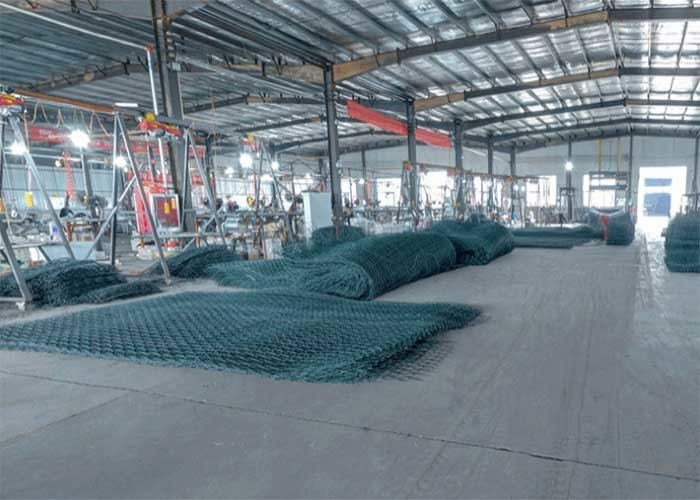

Gabion Fence Workshop
