Woven Gabion Box Gabion Wire Baskets For Stone Gabion Fence System
Gabion box Details

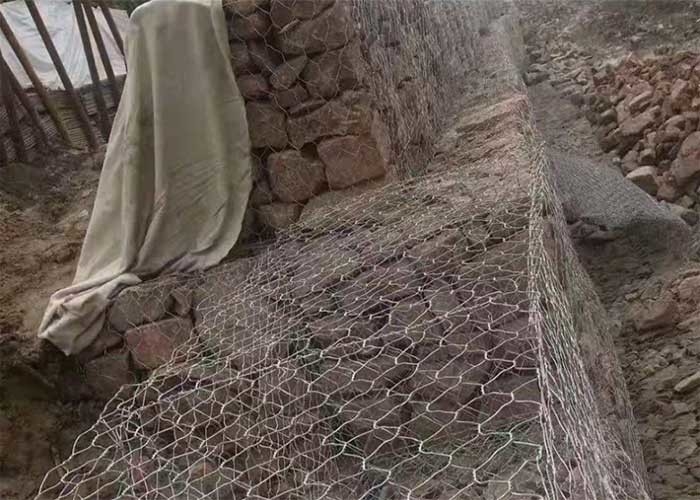

A double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells,interconnected with other similar units, and filled wih stone at the project size to form flexible ,permeable, monolithic structures such as retaining walls, sea wall,channel linings,revetments,and weirs for erosion control projects.
Gabion Fence System Specifications
|
Raw material
|
high quality low carbon iron rod/Steel Pipe
|
|
Fabrication process
|
-Electroplated,-welded,-spot welded,Gas shielded welding
|
|
Surface finishing
|
-Galvanized,-powder spray coated,-vinyl coated,-PVC coated inany colors
|
|
|
Wire of low carbon steel,galvanized iron,plastic coated,powder coated,stainless steel is available
|
|
Fittings
|
STeel tubing,base and cap
|
|
Applications
|
perimeter protection of construction sites,road closure,events demarcation,warehouse partition and crowd control,etc
|
|
Standard frame sizes
|
8'x10' 6'x10' 4x10',other size available upon request
|
|
Length(m)
|
Width(m)
|
Height(m)
|
Cells
|
|
1.0
|
1.0
|
1.0
|
1
|
|
1.5
|
1.0
|
1.0
|
1
|
|
2.0
|
0.5
|
0.5
|
2
|
|
2.0
|
1.0
|
0.5
|
2
|
|
2.0
|
1.0
|
1.0
|
2
|
|
3.0
|
1.0
|
0.5
|
3
|
|
3.0
|
1.0
|
1.0
|
3
|
|
4.0
|
1.0
|
1.0
|
4
|
|
4.0
|
1.0
|
1.0
|
4
|
|
Custom sizes are also available
|
Gabion box Applications
Gabion Box with its good corrosion resistance and oxidation resistance, serves well as strengthening,protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
Gabion box has the following positive advantages:
1.Cost effective and environmentally friendly alternative to concrete system.
2.The Gabion structure blends easily and harmoniously with natural surroundings.
3.Simple and speedy installation, using natural or quarried stones obtained locally.
4.Ability to deform without cracking allowing the structure to withstand any unpredictable movement or settlement without loss or stability.
5.Higher resistance to natural forces due to better tensile strength.
6.Majority of manpower need not to be skilled and speed at which the work is carried out is unparalleled in civil engineering, besides making it cost effective.
7.Easy of repair to any damaged cages, with minimal expense.
8.The use of Gabions as retaining structures provides a low cost alternative to concrete or masonry retaining walls.
Gabion box Packing:
1. carton box or on pallet or bundle on the pallet
2. according to customers' request.
